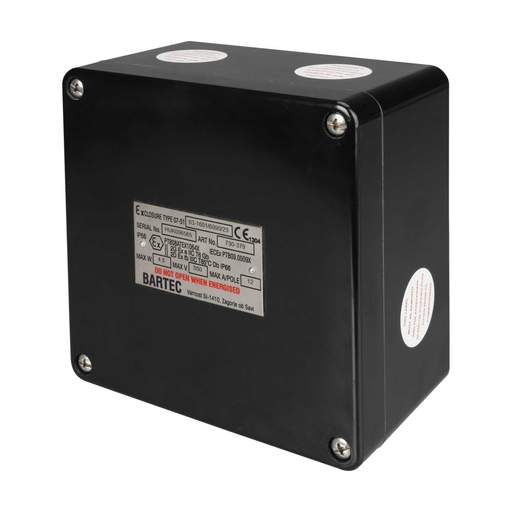

Bartec Zone 1 Ex Junction Box with 15 x SAK2.5 Terminals
Part Code: 219883
Stock Code: 2781-6625
Bartec Zone 1 Ex Junction Box with 15 x SAK2.5 Terminals
Part Code: 219883
Stock Code: 2781-6625
Features
- GRP Ex e terminal box
- Safe protection even when they are exposed to extreme environmental conditions, aggressive chemical media or high mechanical stress
- 15 x SAK2.5 terminals, 1 x EK4 earth terminal and 1 x steel earth continuity plate
- 2 x M20 tapping top, 2 x M20 tapping bottom, 1 x M20 left side and 1 x M20 right side
- This product is no longer available to order online - Please check local store for stock
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II 2GD EExe II T6 IP66 T 80DegC
- Cable Entry
- 6 x M20
- Certification Code
- PTB 08 ATEX 1064X GB160
- Colour
- Black
- Depth
- 90mm
- Dimensions
- (H)160 mm x (W)160 mm x (D)90 mm
- Guarantee
- 1 Year
- Height
- 160mm
- IP Rating
- IP66
- Material
- GRP
- Number of Terminals
- 15
- Packaging Types
- Each
- Terminal Capacity
- 2.5mm²
- Unspsc V18
- 39121332
- Unspsc V24
- 39121332
- Weight
- 1.40000kg
- Width
- 160mm
- Zone Rating
- Zone 1 Zone 2 Zone 21 Zone 22
