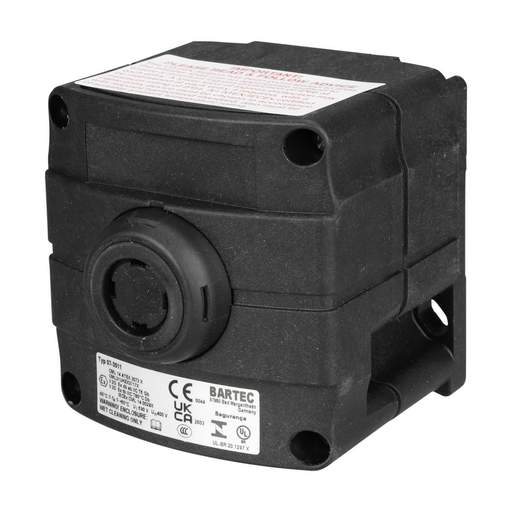

Bartec 1 Way Black Ex Pushbutton Station
Part Code: 409378
Stock Code: 2781-6655
Bartec 1 Way Black Ex Pushbutton Station
Part Code: 409378
Stock Code: 2781-6655
Features
- 1 x pushbutton 1 NO 1 NC
- Installation in Zone 1, Zone 2, Zone 21 and Zone 22
- Thermoplastic enclosure
- Degree of protection IP66
- 1 x M20, for plastic version with earth terminal
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II 2G Ex db eb IIC T6 Gb, Ex II 2G Ex db eb ia IIC T6 Gb, Ex II 2D Ex tb IIIC T80°C Db
- Cable Entry
- 1 x M20
- Certification Code
- CML 14 ATEX 3073 X
- Contact Configuration
- 1 NO 1 NC
- Current Rating
- 16A
- Depth
- 81mm
- Dimensions
- (H)88 mm x (W)88 mm x (D)81 mm
- Guarantee
- 1 Year
- Height
- 88mm
- IP Rating
- IP66
- Material
- Thermoplastic
- Packaging Types
- Each
- Unspsc V18
- 39122214
- Unspsc V24
- 39122214
- Voltage Rating
- 690V
- Weight
- 0.50000kg
- Width
- 88mm
- Zone Rating
- Zone 1 Zone 2 Zone 21 Zone 22
