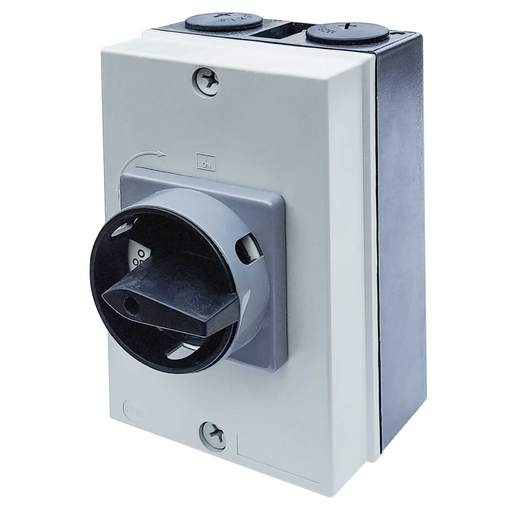

MCG 16A 1500V / 20A 1000V 4 Pole DC Rotary Isolator IP66
Part Code: SMI16-4DC
Stock Code: 2781-7849
MCG 16A 1500V / 20A 1000V 4 Pole DC Rotary Isolator IP66
Part Code: SMI16-4DC
Stock Code: 2781-7849
Features
- Rated up to 1500V DC [DC-21B and DC-PV2]
- Padlockable in OFF position for added security [up to 3 padlocks]
- Excellent switching and high short circuit capacity
- Suitable for photovoltaic - isolators, inverter applications, DC solar pumps
- BS EN60947-1/3
- Insulated enclosure flame retardant material
- Wiping contacts
- Interlock feature [Cover opens only in OFF position]
- Knockout cable entries [x2 25mm, x4 M25]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Knockout Cable Entries
- Colour
- Grey
- Compliance
- UKCA, CE
- Current Rating
- 16A
- Depth
- 74mm
- Dimensions
- (H)160 mm x (W)100 mm x (D)74 mm
- Guarantee
- 1 Year
- Height
- 160mm
- IP Rating
- IP66
- Lockable
- Yes
- Material
- PC
- Mounting
- Surface
- Number of Poles
- 4 Pole
- Operating Temperature Range
- -5 - 40°C
- Packaging Types
- Box
- Standards
- IEC/EN 60947-1/3
- Unspsc V18
- 39122233
- Unspsc V24
- 39122233
- Voltage Rating
- 1500V
- Weight
- 0.65500kg
- Width
- 100mm
