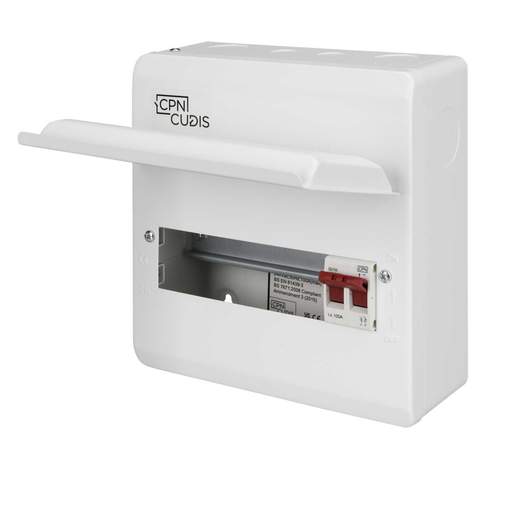

Cudis 8 Way 100A Isolator Incomer Metal Clad Consumer Unit
Part Code: TITAN-8/M
Stock Code: 2782-5025
Cudis 8 Way 100A Isolator Incomer Metal Clad Consumer Unit
Part Code: TITAN-8/M
Stock Code: 2782-5025
Features
- Multiple knockouts all around the unit [including rear face]
- Label and instruction sheet included
- Raised DIN rail, with tails clamp fitment holes
- Integrated spirit level
- Captive lid screws
- Compatible with ROSN, ROM RCBOs, MD, MC, MH MCBs, RC2 RCDs and various SPDs
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Cudis
- Current Rating
- 100A
- Depth
- 114mm
- Dimensions
- (H)240 mm x (W)232 mm x (D)114 mm
- Door Type
- Top Hinged
- Guarantee
- 1 Year
- Height
- 240mm
- IP Rating
- IP3X
- Incoming Device
- 100A DP Isolator
- Material
- Steel
- Mounting
- Surface
- Number of Modules
- 10
- Number of Outgoing Ways
- 8
- Packaging Types
- Each
- Product Range
- TITAN
- Standards
- BS EN 61439-3
- Supplied With
- 1 x 100A DP Isolator
- Surge Protection Fitted
- No
- Surge Protection Ready
- No
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V
- Weight
- 2.7kg
- Width
- 232mm
