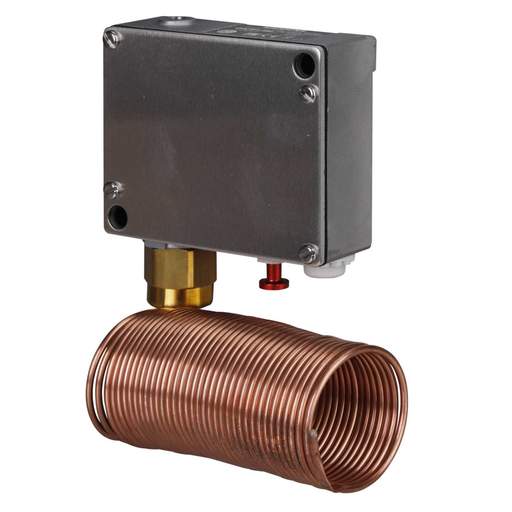

Siemens 2 Point Frost Monitor with 6m Capillary Tube
Part Code: QAF81.6M
Stock Code: 2783-8699
Siemens 2 Point Frost Monitor with 6m Capillary Tube
Part Code: QAF81.6M
Stock Code: 2783-8699
Features
- For temperature supervision on the air side of air heating coils in ventilation and air conditioning plants to provide protection against frost
- 6m capillary tube
- Responds to temperature change sensed over any 30 - 100cm length of capillary
- Robust aluminium die-cast housing
- Small switching differential
- Setpoint adjustment -5 - 15°C
- Protection standard IP54
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Depth
- 37mm
- Dimensions
- (H)113 mm x (W)106 mm x (D)37 mm
- Guarantee
- 5 Years
- Height
- 113mm
- IP Rating
- IP54
- Packaging Types
- Each
- Previously Known As
- BPZ:QAF81.6M
- Standards
- EN 60730-1
- Temperature Range
- -5 - 15°C
- Unspsc V18
- 39121523
- Unspsc V24
- 39121523
- Weight
- 0.863kg
- Width
- 106mm
