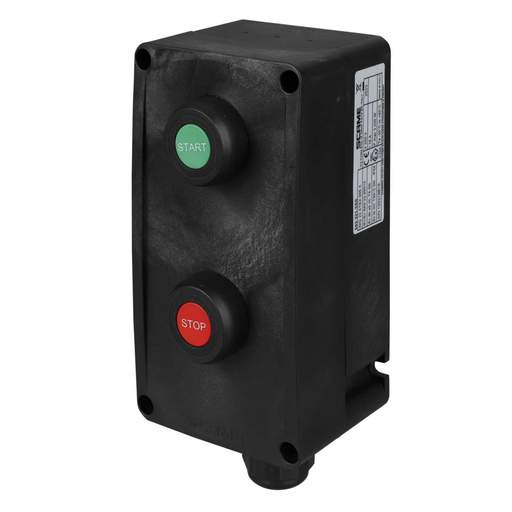

Scame Start / Stop Large Ex Pushbutton Station
Part Code: 593.321-5SS
Stock Code: 2784-3079
Scame Start / Stop Large Ex Pushbutton Station
Part Code: 593.321-5SS
Stock Code: 2784-3079
Features
- COMPACT-EX[GD] range for applications in Zone 1/2 [Gas] and 21/22 [Dust]
- Thermoplastic material with glass fibre resistant to impact even at low temperatures
- 16A start stop in a 2 gang enclosure
- Contacts 2 NO [start] and 2 NC [stop]
- Degree of protection IP66
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Scame
- Atex Classificatio
- II 2GD, Ex db eb IIC T6 Gb, Ex tb IIIC T80°C Db IP66
- Cable Entry
- 1 x M25
- Certification Code
- EMA22UKEX0046X
- Contact Configuration
- 2 NO 2 NC
- Current Rating
- 16A
- Depth
- 82mm
- Dimensions
- (H)180 mm x (W)95 mm x (D)82 mm
- Guarantee
- 1 Year
- Height
- 180mm
- IP Rating
- IP66
- Material
- Thermoplastic
- Packaging Types
- Each
- Product Range
- COMPACT-EX GD SERIES
- Unspsc V18
- 39122214
- Unspsc V24
- 39122214
- Voltage Rating
- 230V
- Weight
- 0.43000kg
- Width
- 95mm
- Zone Rating
- Zone 1 Zone 2 Zone 21 Zone 22
