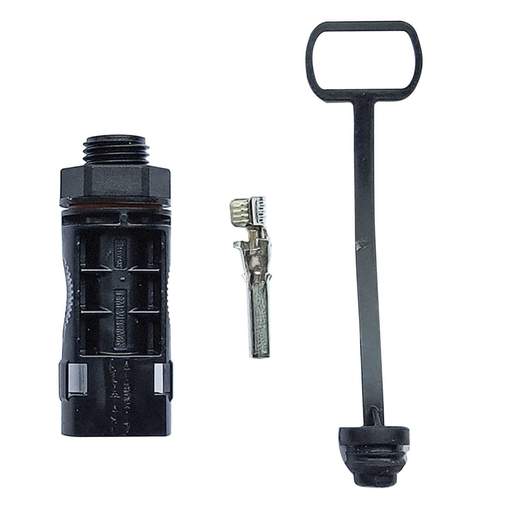

F4P 1500V DC PV Solar Straight Male Connector c/w Sealing Cap
Part Code: F4PEMPVPCM4-EX
Stock Code: 2784-5329
F4P 1500V DC PV Solar Straight Male Connector c/w Sealing Cap
Part Code: F4PEMPVPCM4-EX
Stock Code: 2784-5329
Features
- 1500V DC rated voltage
- IP68 [mated condition]
- Supplied with sealing cap
- Suitable for 2.5mm², 4mm², 6mm² cable
- Ambient temperature rated: -40 to +85°C
- NEC interlock
- Part of a complete range of solar connectors and accessories
- Salt mist test: IEC 60068-2-52, severity 6
- UV protection: IEC 4892-2
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- F4P
- Colour
- Black
- Diameter
- 19mm
- Dimensions
- (L)50 mm x (Dia)19 mm
- Guarantee
- 1 Year
- IP Rating
- IP68
- Length
- 50mm
- Material
- NORYL 9406P PPE+PS
- Packaging Types
- Each
- Standards
- IEC 62852
- Unspsc V18
- 39121409
- Unspsc V24
- 39121409
- Weight
- 0.14000kg
