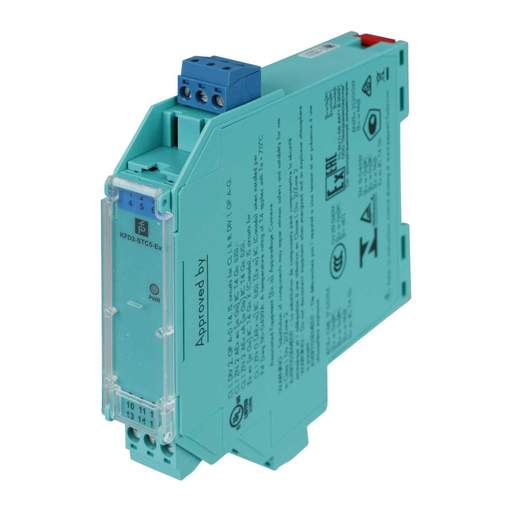

Pepperl & Fuchs 24V DC 1 Channel Ex Smart Transmitter Power Supply
Part Code: KFD2-STC5-EX1
Stock Code: 2785-1143
Pepperl & Fuchs 24V DC 1 Channel Ex Smart Transmitter Power Supply
Part Code: KFD2-STC5-EX1
Stock Code: 2785-1143
Features
- Isolated barrier for intrinsic safety applications
- Supplies 2 and 3 wire smart transmitters, and can also be used with 2 wire smart current sources
- Transfers the analog input signal to the safe area as an isolated current value
- 1 Channel isolated barrier
- 24V DC supply [power rail]
- Output 4mA - 20mA current sink / current source
- Terminals with test points
- Up to SIL 2 acc. to IEC/EN 61508
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II [1]G [Ex ia Ga] IIC, 1 II [1]D [Ex ia Da] IIIC, 1 I [M1] [Ex ia Ma] I
- Certification Code
- CML 17 ATEX 2031X
- Depth
- 115mm
- Dimensions
- (H)124 mm x (W)20 mm x (D)115 mm
- Guarantee
- 1 Year
- Height
- 124mm
- Mounting
- DIN Rail
- Packaging Types
- Each
- Product Range
- K-System
- Unspsc V18
- 39122331
- Unspsc V24
- 39122331
- Voltage Rating
- 24V DC
- Weight
- 0.14000kg
- Width
- 20mm
- Zone Rating
- Zone 2
