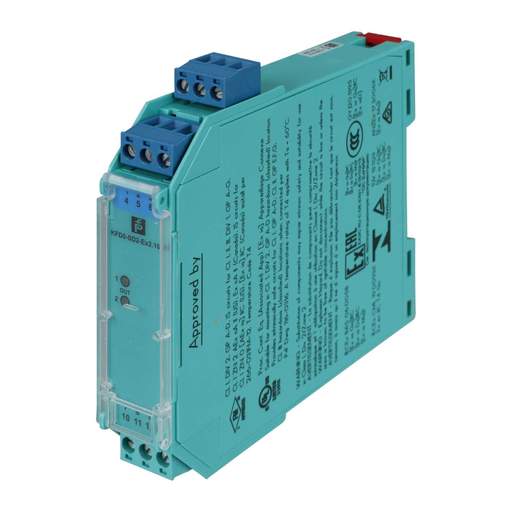

Pepperl & Fuchs 24V DC 2 Channel Ex Solenoid Driver
Part Code: KFD0-SD2-EX2.1045
Stock Code: 2785-1146
Pepperl & Fuchs 24V DC 2 Channel Ex Solenoid Driver
Part Code: KFD0-SD2-EX2.1045
Stock Code: 2785-1146
Features
- Isolated barrier for intrinsic safety applications
- Supplies power to solenoids, LEDs and audible alarms located in a hazardous area
- 2 Channel isolated barrier
- 24V DC supply [loop powered]
- Output 45mA at 10V DC
- Test pulse immunity
- Up to SIL 3 acc. to IEC/EN 61508
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II 3[1]G Ex ec [ia Ga] IIC T4 Gc, 1 II [1]D [Ex ia Da] IIIC, 1 I [M1] [Ex ia Ma] I
- Certification Code
- FIDI 21 ATEX 0091 X
- Depth
- 115mm
- Dimensions
- (H)119 mm x (W)20 mm x (D)115 mm
- Guarantee
- 1 Year
- Height
- 119mm
- Mounting
- DIN Rail
- Packaging Types
- Each
- Product Range
- K-System
- Unspsc V18
- 39122331
- Unspsc V24
- 39122331
- Voltage Rating
- 24V DC
- Weight
- 0.15600kg
- Width
- 20mm
- Zone Rating
- Zone 2
