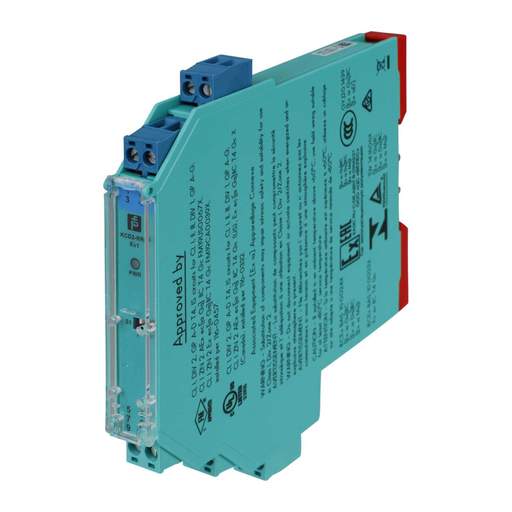

Pepperl & Fuchs 24V DC Ex Resistance Repeater
Part Code: KCD2-RR2-EX1
Stock Code: 2785-1158
Pepperl & Fuchs 24V DC Ex Resistance Repeater
Part Code: KCD2-RR2-EX1
Stock Code: 2785-1158
Features
- Isolated barrier for intrinsic safety applications
- Transfers resistance values of RTDs or potentiometers from hazardous areas to safe areas
- 1 Channel isolated barrier
- 24V DC supply [power rail]
- Resistance and RTD input [Pt100, Pt500, Pt1000]
- Resistance output
- Accuracy 0.1%
- Line fault detection [LFD] for Pt100
- Up to SIL 2 [SC 3] acc. to IEC/EN 61508
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II [1]G [Ex ia Ga] IIC, 1 II [1]D [Ex ia Da] IIIC , 1 I [M1] [Ex ia Ma] I
- Certification Code
- BASEEFA 10 ATEX 0061X
- Depth
- 114mm
- Dimensions
- (H)119 mm x (W)12.5 mm x (D)114 mm
- Guarantee
- 1 Year
- Height
- 119mm
- Mounting
- DIN Rail
- Packaging Types
- Each
- Product Range
- K-System
- Unspsc V18
- 39122331
- Unspsc V24
- 39122331
- Voltage Rating
- 24V DC
- Weight
- 0.13000kg
- Width
- 12.5mm
- Zone Rating
- Zone 2
