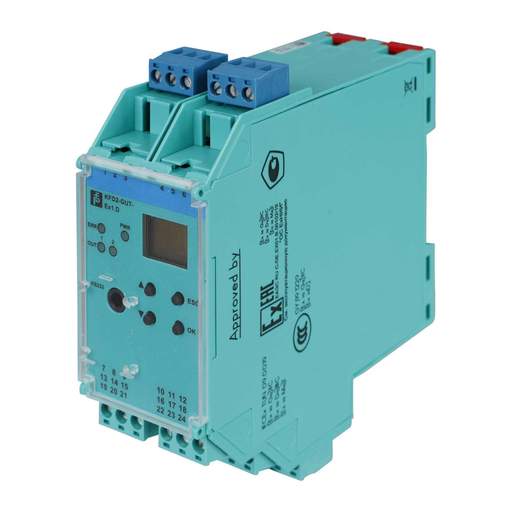

Pepperl & Fuchs 24V DC Ex Temperature Converter with Trip Values
Part Code: KFD2-GUT-EX1D
Stock Code: 2785-1164
Pepperl & Fuchs 24V DC Ex Temperature Converter with Trip Values
Part Code: KFD2-GUT-EX1D
Stock Code: 2785-1164
Features
- Isolated barrier for intrinsic safety applications
- Converts the signal of a resistance thermometer, thermocouple, potentiometer, or voltage source to a proportional output current and also provides a relay trip value
- 1 Channel isolated barrier
- 24V DC supply [power rail]
- Thermocouple, RTD, potentiometer or voltage input
- Redundant TC input
- Current output 0/4mA - 20mA
- 2 relay contact outputs
- Configurable by PACTware or keypad
- Line fault [LFD] and sensor burnout detection
- Up to SIL 2 acc. to IEC/EN 61508 / IEC/EN 61511
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II [1]G [Ex ia Ga] IIC, 1 II [1]D [Ex ia Da] IIIC, 1 I [M1] [Ex ia Ma] I
- Certification Code
- TÜV 03 ATEX 2140
- Depth
- 115mm
- Dimensions
- (H)119 mm x (W)40 mm x (D)115 mm
- Guarantee
- 1 Year
- Height
- 119mm
- Mounting
- DIN Rail
- Packaging Types
- Each
- Product Range
- K-System
- Unspsc V18
- 39122331
- Unspsc V24
- 39122331
- Voltage Rating
- 24V DC
- Weight
- 0.38600kg
- Width
- 40mm
- Zone Rating
- Zone 2
