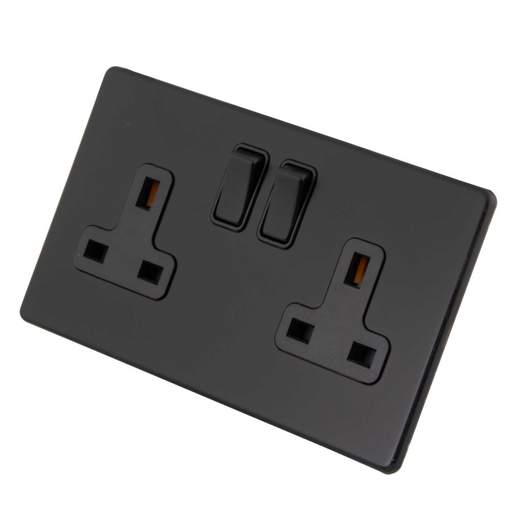

M2 Decorative Screwless 13A 2 Gang DP Switched Socket Black Insert Painted Matt Black
Part Code: 6582-105
Stock Code: 2785-3336
M2 Decorative Screwless 13A 2 Gang DP Switched Socket Black Insert Painted Matt Black
Part Code: 6582-105
Stock Code: 2785-3336
Features
- Screwless face plate
- Modern 4.5mm slim profile
- Simple clip on face plate
- Matching painted matt black switches
- Protective lacquer coating
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- M2
- Colour
- Matt Black
- Compliance
- CE Compliant 93/68/EEC
- Current Rating
- 13A
- Depth
- 4.5mm
- Dimensions
- (H)86 mm x (W)146 mm x (D)4.5 mm
- Finish
- Painted Matt Black
- Fixing Centres
- 120.6mm
- Guarantee
- 25 Years
- Height
- 86mm
- Insert Colours
- Black
- Material
- Stainless Steel
- Mounting
- Wall
- Mounting Depth
- 25mm
- Neon
- No
- Number of Gangs
- 2
- Number of Poles
- Double Pole
- Packaging Types
- Each
- Product Range
- M2 decorative screwless
- Standards
- BS 1363
- Supplied With
- Fixing Screws and Clear Gasket
- Switched Unswitched
- Switched
- Terminal Capacity Earth
- 3 x 2.5 mm², 3 x 4 mm², 2 x 6 mm²
- Terminal Capacity Live Neutral
- 3 x 2.5 mm², 3 x 4 mm², 2 x 6 mm²
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 230V
- Weight
- 0.176kg
- Width
- 146mm
