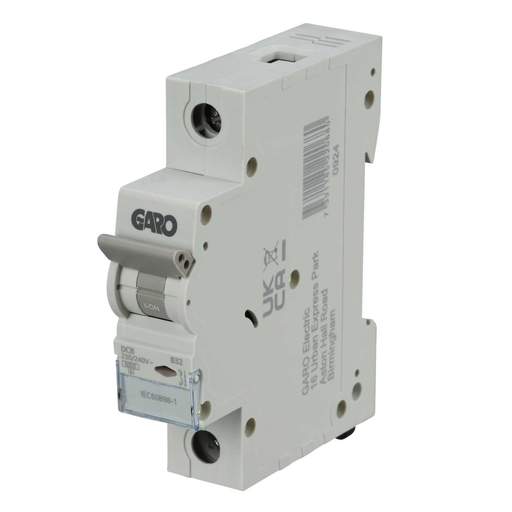

Garo 32A Single Pole 6kA B Curve MCB
Part Code: DCBGRB132
Stock Code: 2788-2031
Garo 32A Single Pole 6kA B Curve MCB
Part Code: DCBGRB132
Stock Code: 2788-2031
Features
- Clip in modules for use with GARO Diamond Consumer Units
- 3 Year Warranty
- Visible trip indication
- Lock off capabilities [with suitable lock off]
- Circuit protection for residential applications and domestic appliances plus lighting and distribution circuits
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 32A
- Depth
- 75mm
- Dimensions
- (H)82 mm x (W)18 mm x (D)75 mm
- Guarantee
- 3 Years
- Height
- 82mm
- Incoming Terminal Capacity
- 25mm²
- Mounting
- DIN Rail
- Number of Modules
- 1
- Number of Poles
- Single Pole
- Outgoing Terminal Capacity
- 25mm²
- Packaging Types
- Each
- Product Range
- Diamond
- Short Circuit Rating
- 6kA
- Standards
- EN 60898, IEC 60898
- Tripping Characteristics
- B Curve
- Unspsc V18
- 39121603
- Unspsc V24
- 39121603
- Voltage Rating
- 230V 400V
- Weight
- 5.04kg
- Width
- 18mm
