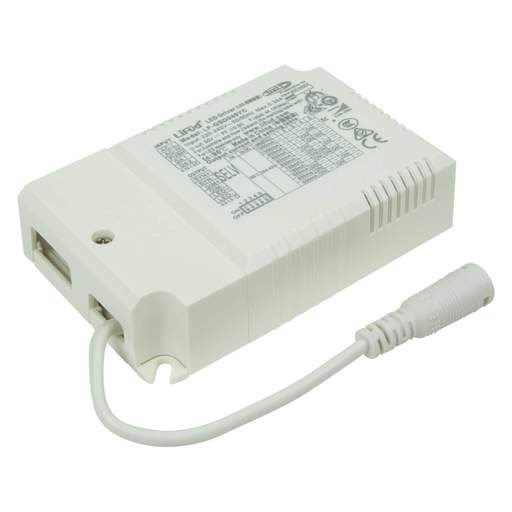

Fusion 0-10V DALI Dimmable Driver for LED Panels
Part Code: FPDDALI/10
Stock Code: 2789-8960
Fusion 0-10V DALI Dimmable Driver for LED Panels
Part Code: FPDDALI/10
Stock Code: 2789-8960
Features
- Suitable for Class I and II light fixtures
- Constant current output and the output current can be adjusted via the DIP switch
- Built-in active PFC function
- Standby power consumption
0.5W - 0.1% dimming depth
- 10pcs of LED drivers can be dimmed synchronously
- Supports 0-10V/PWM/Rx dimming
- Supports DALI dimming and the logarithmic or the linear dimming curves can be selected via the software
- Supports PUSH dimming
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Fusion
- Class Type
- Class 2
- Colour
- White
- Compliance
- UKCA, CE, RoHS
- Depth
- 28mm
- Dimensions
- (L)105 mm x (W)69 mm x (D)28 mm
- Dimmable
- Yes
- IP Rating
- IP20
- Length
- 105mm
- Material
- Polycarbonate
- Maximum Operating Temperature
- 50°C
- Minimum Operating Temperature
- -30°C
- Packaging Types
- Each
- Unspsc V18
- 39112103
- Unspsc V24
- 39112103
- Voltage Rating
- 230V
- Weight
- 0.17800kg
- Width
- 69mm
