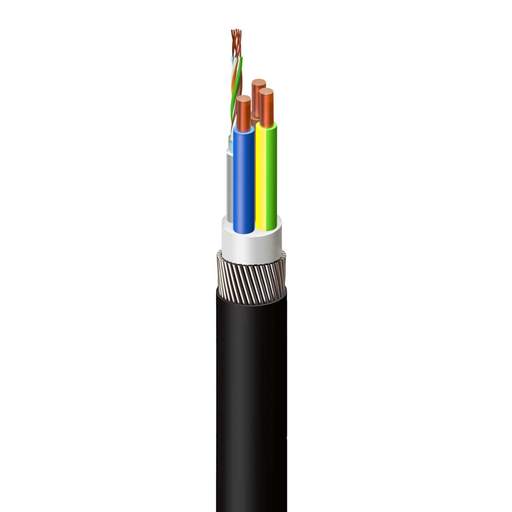

6mm² 3 Core CAT6A SWA EV Cable (Cut Length Sold By The Metre)
Part Code: UKCEV3C6.0CAT6AFTPSWA
Stock Code: 2791-4359
6mm² 3 Core CAT6A SWA EV Cable (Cut Length Sold By The Metre)
Part Code: UKCEV3C6.0CAT6AFTPSWA
Stock Code: 2791-4359
Features
- Designed for EV charging units
- The cable is a combination of power cores and screened Cat6A data cable offering a solution for quick installation including connection to CTs, eliminating the need to run two separate cables
- Suitable for installation direct burial in free-draining soil conditions for fixed indoor and outdoor installations
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Armour Type
- SWA [Galvanised Steel Wires]
- Colour
- Black
- Core Colours
- Blue, Brown, and Green/Yellow
- Cross Sectional Area
- 6mm²
- Diameter
- 20mm
- Dimensions
- (Dia)20 mm
- Number of Cores
- 3
- Packaging Types
- Metre
- Product Range
- Trident EV Power Plus 6
- Sheath
- PVC
- Standards
- BS EN 60228, IEC 61156-5, BS 7655-1.3, BS EN 60332-1-2
- Unspsc V18
- 26121615
- Unspsc V24
- 26121615
- Voltage Rating
- 700V
- Weight
- 0.60000kg
