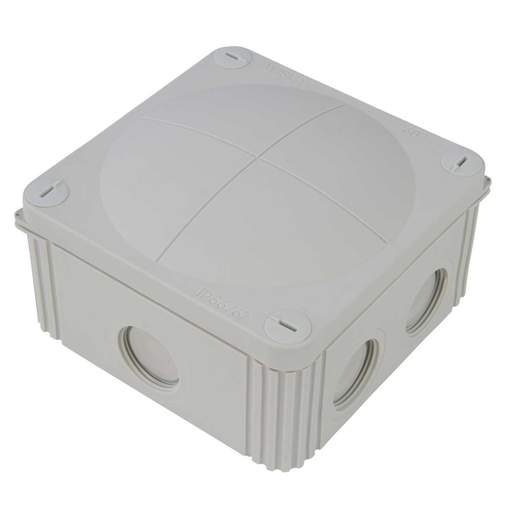

Wiska COMBI 607/5/S 110mm x 110mm x 66mm PVC Adaptable Box Grey IP66
Part Code: 10061778
Stock Code: 0154-7029
Wiska COMBI 607/5/S 110mm x 110mm x 66mm PVC Adaptable Box Grey IP66
Part Code: 10061778
Stock Code: 0154-7029
Features
- Highly resistant to fats, oils, acids, strong and weak alkaline solution and alcohol
- 10% more room inside due to bellied cover
- Captive and rust free quick release lid
- Quarter turn needed for closing of box
- Resistance to ultraviolet
- Flame retardent and halogen free
- Impact resistant
- Suitable for extreme conditions and outdoor installations
- 30% labour saving due to faster cable entry through soft self-sealing diaphragm
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Grey
- Depth
- 66mm
- Dimensions
- (L)110 mm x (W)110 mm x (D)66 mm
- Guarantee
- 1 Year
- IP Rating
- IP66
- Length
- 110mm
- Lid Type
- Screwed
- Lockable
- Yes
- Material
- Polypropylene/Thermoplastic Elastomer
- Maximum Operating Temperature
- 100°C
- Minimum Operating Temperature
- -30°C
- Number of Knockouts
- 10
- Packaging Types
- Each
- Product Range
- Adaptable Boxes
- Standards
- EN 60529
- Type
- Combi Junction Box IP66/67
- Unspsc V18
- 39121324
- Unspsc V24
- 39121324
- Weight
- 0.19200kg
- Width
- 110mm
