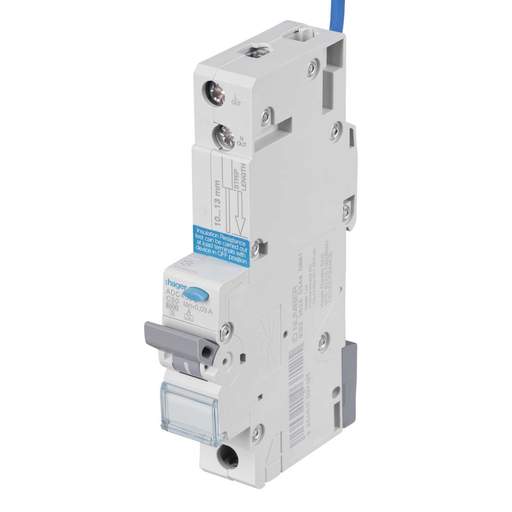

Hager 50A Single Pole 1 Module C Curve 6kA 30mA Type A RCBO
Part Code: ADC450G
Stock Code: 2792-4919
Hager 50A Single Pole 1 Module C Curve 6kA 30mA Type A RCBO
Part Code: ADC450G
Stock Code: 2792-4919
Features
- Removal of functional earth allows a faster neater installation
- Bottom din rail clip allows removal from consumer unit with no requirement to remove busbar
- Anti counterfeiting number gives installer peace of mind that genuine products are being installed
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 50A
- Depth
- 70mm
- Dimensions
- (H)115 mm x (W)17.8 mm x (D)70 mm
- Guarantee
- 2 Years
- Height
- 115mm
- Mounting
- DIN Rail
- Number of Modules
- 1
- Number of Poles
- Single Pole
- Packaging Types
- Each
- Rcd Type
- A
- Short Circuit Rating
- 6kA
- Standards
- BS EN 61009-1, IEC 1009-2-2
- Tripping Characteristics
- C Curve
- Tripping Sensitivity
- 30mA
- Unspsc V18
- 39121601
- Unspsc V24
- 39121601
- Voltage Rating
- 230V
- Weight
- 0.203kg
- Width
- 17.8mm
