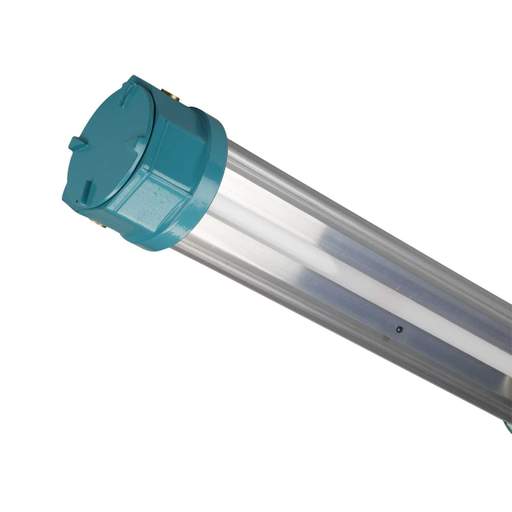

Petrel 30W 2ft LED Exd Zone 1 Hazardous Area Self Test Emergency Light Fitting
Part Code: 7LED2700/EM/ST/R2
Stock Code: 2793-3787
Petrel 30W 2ft LED Exd Zone 1 Hazardous Area Self Test Emergency Light Fitting
Part Code: 7LED2700/EM/ST/R2
Stock Code: 2793-3787
Features
- Low maintenance high efficiency LED light source
- Suitable for zones 1, 2, 21 and 22 protection
- 3 hour emergency
- 3-hour self-test emergency with auto-commissioning, runs monthly and yearly checks automatically
- 2 x M8 tapped holes for installation
- Marine grade aluminium body with high impact polycarbonate tube
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II 2 G Ex db II* T6 Gb, II 2 D Ex tb IIIC T85°C Db
- Cable Entry
- 4 x M20
- Certification Code
- CML 14ATEX1028X, CML 21UKEX11018X, IECEx CML140012X
- Compliance
- UKCA,CE, IECEx, Ex
- Depth
- 158mm
- Dimensions
- (L)752 mm x (W)140 mm x (D)158 mm
- Emergency
- Yes
- Emergency Duration
- 3 Hours
- Emergency Type
- Maintained / Non-Maintained
- Fixing Centres
- 632mm
- Gear Option
- Electronic Emergency
- Guarantee
- 5 Years
- IP Rating
- IP66
- Lamp Type
- Integrated LED
- Length
- 752mm
- Lumens Output
- 2670lm
- Material
- Aluminium / Polycarbonate
- Mounting
- Surface
- Operating Temperature Range
- -20 - 55°C
- Packaging Types
- Each
- Power Rating
- 30W
- Product Range
- 7 Series
- Standards
- EN/IEC 60079-0, IEC60079-1, IEC60079-31
- Unspsc V18
- 39111501
- Unspsc V24
- 39111501
- Voltage Rating
- 230V
- Weight
- 4.20000kg
- Width
- 140mm
- Zone Rating
- Zone 1 Zone 2 Zone 21 Zone 22
