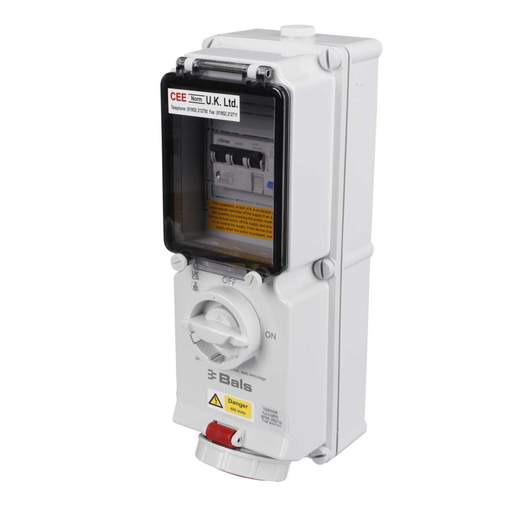

Ceenorm 16A 3P+N+E 415V Interlocked Wall Socket with 25A 30mA Type A RCD IP67
Part Code: 880142-A
Stock Code: 2793-3943
Ceenorm 16A 3P+N+E 415V Interlocked Wall Socket with 25A 30mA Type A RCD IP67
Part Code: 880142-A
Stock Code: 2793-3943
Features
- Switch interlocked socket with protection
- 16A, 415V, 5P, IP67, 6H pre-wired to RCD
- Socket protected by 25A 30mA 4 pole RCD Type A
- Maximum conductor size of 25mm² to RCD, 10mm² to earth
- Back boxes are supplied drilled for cable entry: 3 x 25mm threaded
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- 1 x M25 Top Entry and 2 x M25 Bottom Entry
- Colour
- Red
- Compliance
- CE
- Current Rating
- 16A
- Depth
- 154mm
- Dimensions
- (H)400 mm x (W)134 mm x (D)154 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 400mm
- IP Rating
- IP67
- Material
- Polycarbonate
- Mounting
- Wall
- Number of Poles
- 3P N E
- Packaging Types
- Each
- Rcd Fitted
- Yes
- Rcd Rating
- 25A
- Standards
- IEC 60309-1, IEC 60309-2
- Terminal Type
- Screw
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 415V
- Weight
- 2.25000kg
- Width
- 134mm
