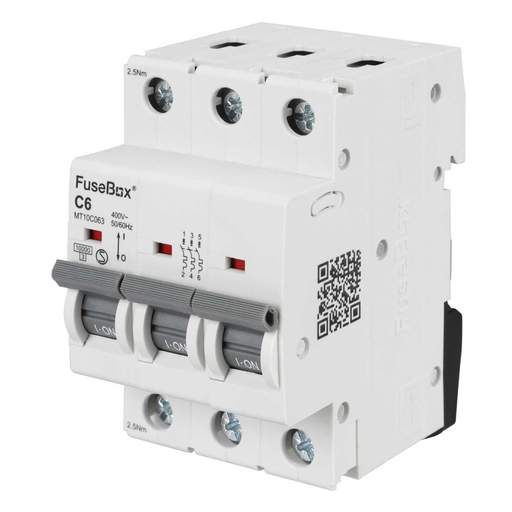

Fusebox 6A Triple Pole 10kA C Curve MCB
Part Code: MT10C063
Stock Code: 2793-4519
Fusebox 6A Triple Pole 10kA C Curve MCB
Part Code: MT10C063
Stock Code: 2793-4519
Features
- Designed for use with Fusebox TP N Distribution Boards
- Triple Pole C Curve
- 10kA rated, providing protection against overload and short circuit
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Fusebox
- Current Rating
- 6A
- Depth
- 69.6mm
- Dimensions
- (H)83 mm x (W)54 mm x (D)69.6 mm
- Guarantee
- 1 Year
- Height
- 83mm
- Incoming Terminal Capacity
- 16mm²
- Mounting
- DIN Rail
- Number of Modules
- 3
- Number of Poles
- Triple Pole
- Outgoing Terminal Capacity
- 16mm²
- Packaging Types
- Each
- Short Circuit Rating
- 10kA
- Standards
- IEC/EN 60898-1
- Tripping Characteristics
- C Curve
- Unspsc V18
- 39121603
- Unspsc V24
- 39121603
- Voltage Rating
- 400V
- Width
- 54mm
