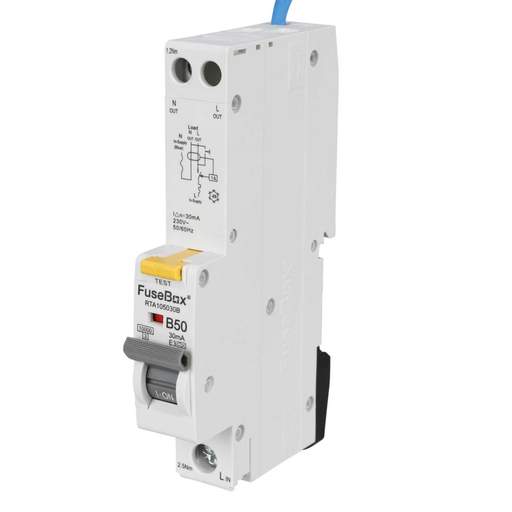

Fusebox 50A 1P+N 1 Module B Curve 10kA 30mA Type A RCBO
Part Code: RTA105030B
Stock Code: 2793-4735
Fusebox 50A 1P+N 1 Module B Curve 10kA 30mA Type A RCBO
Part Code: RTA105030B
Stock Code: 2793-4735
Features
- Designed for use in FuseBox Three Phase Distribution boards [10kA]
- Protects against earth leakage, overload and short circuits
- Type A for AC and pulsating DC sensitivity
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Fusebox
- Current Rating
- 50A
- Depth
- 69.6mm
- Dimensions
- (H)114 mm x (W)17.8 mm x (D)69.6 mm
- Guarantee
- 1 Year
- Height
- 114mm
- Incoming Terminal Capacity
- 16mm²
- Mounting
- DIN Rail
- Number of Modules
- 1
- Number of Poles
- Single Pole and Neutral
- Outgoing Terminal Capacity
- 10mm²
- Packaging Types
- Each
- Rcd Type
- A
- Short Circuit Rating
- 10kA
- Standards
- IEC/EN 61009-1
- Tripping Characteristics
- B Curve
- Tripping Sensitivity
- 30mA
- Unspsc V18
- 39121601
- Unspsc V24
- 39121601
- Voltage Rating
- 230V
- Width
- 17.8mm
