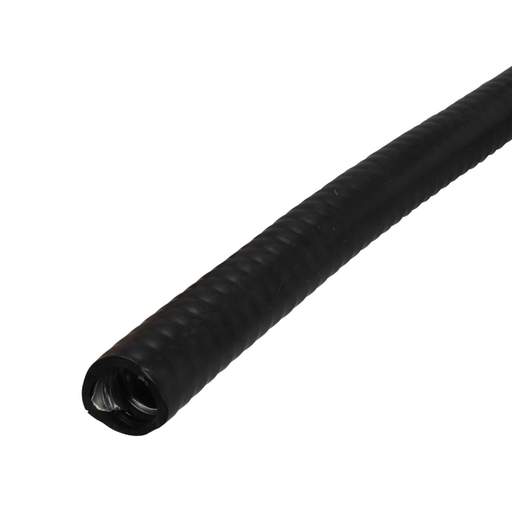

MCG 20mm Galvanised Steel PVC Flexible Liquid Tight Conduit (10m Reel)
Part Code: GSFLT20/10M
Stock Code: 2793-5443
MCG 20mm Galvanised Steel PVC Flexible Liquid Tight Conduit (10m Reel)
Part Code: GSFLT20/10M
Stock Code: 2793-5443
Features
- Constructed from galvanised steel with a black PVC cover providing excellent flexibility

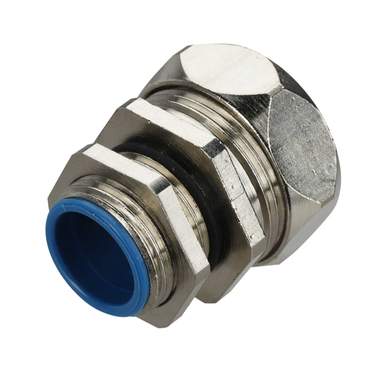

- IP Rated IP68 when used with MCG liquid tight gland: GSFLT20 [sold separately]
- Temperature range: -40° to +90°C
- Bending radius: 65mm
- Crush resistance: 1000N
- Standard: EN61386
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Black
- Compliance
- UKCA, CE
- Diameter
- 20mm
- Dimensions
- (L)10 m x (Dia)20 mm
- External Diameter
- 21.5mm
- Finish
- PVC Coated Galvanised Steel
- Guarantee
- 1 Year
- IP Rating
- IP68
- Internal Diameter
- 15.5mm
- Length
- 10m
- Material
- PVC coated Galvanised Steel
- Operating Temperature Range
- -40 - +90°C
- Packaging Types
- Pack
- Standards
- EN 61386
- Unspsc V18
- 39131706
- Unspsc V24
- 39131706
- Weight
- 3.43400kg
