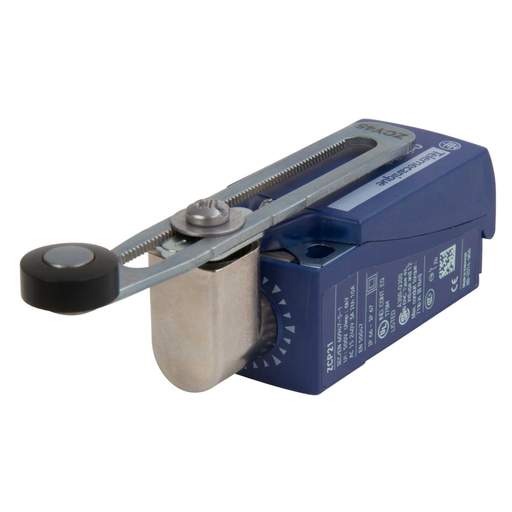

Telemecanique Sensor Limit Switch Plastic Roller Lever Variable Length 1 NC + 1 NO M16
Part Code: XCKP2145P16
Stock Code: 0121-7005
Telemecanique Sensor Limit Switch Plastic Roller Lever Variable Length 1 NC + 1 NO M16
Part Code: XCKP2145P16
Stock Code: 0121-7005
Features
- OsiSense XC range
- Rotary head
- Thermoplastic spring return roller lever variable length
- Lateral approach 2 directions
- 2 Poles
- Screw clamp terminals
- Plastic body
- IP66
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- M16
- Contact Configuration
- 1 NO 1 NC
- Depth
- 30mm
- Dimensions
- (H)65 mm x (W)31 mm x (D)30 mm
- Frequency
- 50/60 Hz
- Guarantee
- 18 Months
- Head Type
- Thermoplastic Roller Lever – Adjustable Length
- Height
- 65mm
- IP Rating
- IP66
- Material
- Plastic
- Number of Poles
- 2 Pole
- Packaging Types
- Each
- Product Range
- Limit Switches
- Standards
- IEC 60947
- Unspsc V18
- 39122213
- Unspsc V24
- 39122213
- Weight
- 0.12600kg
- Width
- 31mm
