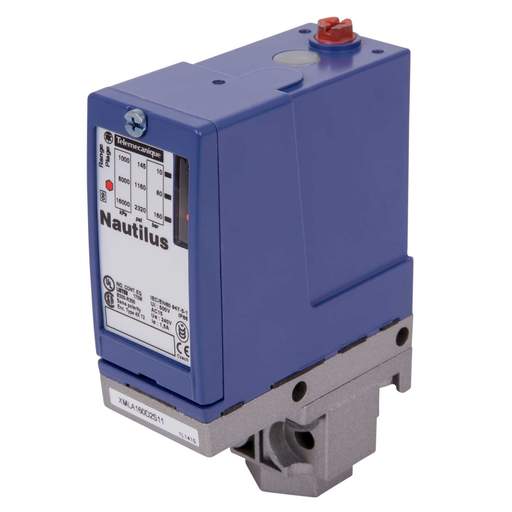

Telemecanique Sensor Pressure Switch 160 Bar Fixed Scale 1 Threshold 1 CO
Part Code: XMLA160D2S11
Stock Code: 0086-2687
Telemecanique Sensor Pressure Switch 160 Bar Fixed Scale 1 Threshold 1 CO
Part Code: XMLA160D2S11
Stock Code: 0086-2687
Features
- OsiSense XU range
- Electromechanical pressure sensor detecting a single threshold
- Sea water, fresh water, hydraulic oil and air 0-70 °C
- Contacts type: 1 CO
- Adjustable range of switching point on falling pressure 0.1 ...9.5 bar
- Scale type: Fixed differential
- Operational voltage: Up to 240V AC / DC
- One entry tapped for PG13.5 cable gland [0013-7089]
- EN 60947-5-1
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Depth
- 113mm
- Dimensions
- (H)75 mm x (W)35 mm x (D)113 mm
- Guarantee
- 18 Months
- Height
- 75mm
- Packaging Types
- Each
- Pressure Bar
- 160
- Product Range
- Pressure Switch
- Standards
- IEC 60947
- Unspsc V18
- 39122210
- Unspsc V24
- 39122210
- Weight
- 0.74500kg
- Width
- 35mm
