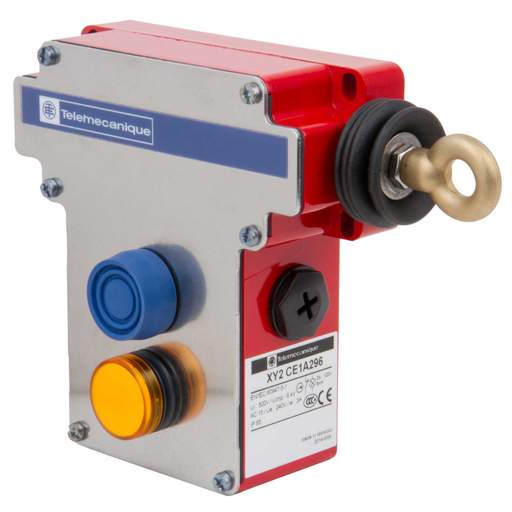

Telemecanique Sensor Preventa XY2 Emergency Stop Right Hand Rope Pull Switch with Pilot Light
Part Code: XY2CE1A296
Stock Code: 0086-8768
Telemecanique Sensor Preventa XY2 Emergency Stop Right Hand Rope Pull Switch with Pilot Light
Part Code: XY2CE1A296
Stock Code: 0086-8768
Features
- Local signalling - with pilot light
- Housing colour - Red RAL 3000
- Contacts type and composition - 2 NO 2 NC
- Reset - by booted pushbutton
- Class of protection against electric shock - Class I conforming to NF C 20-030 and EN/IEC 61140
- Trigger cable maximum length 70m, RH side
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Red
- Contact Configuration
- 2 NO 2 NC
- Depth
- 105mm
- Dimensions
- (H)142 mm x (W)229 mm x (D)105 mm
- Guarantee
- 18 Months
- Height
- 142mm
- Material
- Stainless Steel cover, Zamak body (zinc alloy that contains aluminum, magnesium, and copper)
- Packaging Types
- Each
- Standards
- EN 60947, EN 13850, UL 508
- Unspsc V18
- 39122205
- Unspsc V24
- 39122205
- Weight
- 1.59200kg
- Width
- 229mm
