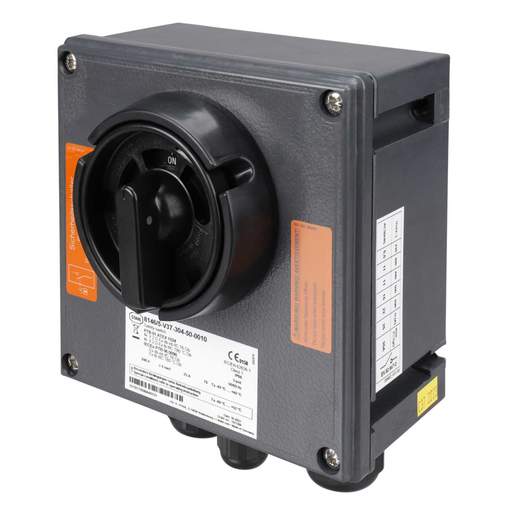

R Stahl 25A 3 Pole + Auxiliary Ex Load Disconnect Switch IP66
Part Code: 201422
Stock Code: 2795-7694
R Stahl 25A 3 Pole + Auxiliary Ex Load Disconnect Switch IP66
Part Code: 201422
Stock Code: 2795-7694
Features
- Can be used with conventional drives and drives controlled by frequency converters
- Single rotary actuator for actuating both main and auxiliary contacts, ≥ 20 ms leading auxiliary contact for safely disconnecting the frequency converter
- 3 x main contacts and 1 auxiliary contact
- Load disconnect switches have an AC- 3 switching capacity
- Version complies with IEC / EN 62626- 1, Class 1
- The rotary actuator can be locked with 3 padlocks in the 0 position
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II 2 G Ex db eb IIC T6 Gb II 2 D Ex tb IIIC T80 °C Db
- Certification Code
- IECEx PTB 06.0090
- Colour
- Grey
- Current Rating
- 25A
- Depth
- 132mm
- Dimensions
- (H)170 mm x (W)170 mm x (D)132 mm
- Guarantee
- 1 Year
- Height
- 170mm
- IP Rating
- IP66
- Material
- Polyester Resin / Glass Fibre Reinforced
- Number of Poles
- 3 Pole
- Packaging Types
- Each
- Unspsc V18
- 39122214
- Unspsc V24
- 39122214
- Voltage Rating
- 690V
- Weight
- 1.96000kg
- Width
- 170mm
- Zone Rating
- Zone 1 Zone 2 Zone 21 Zone 22
