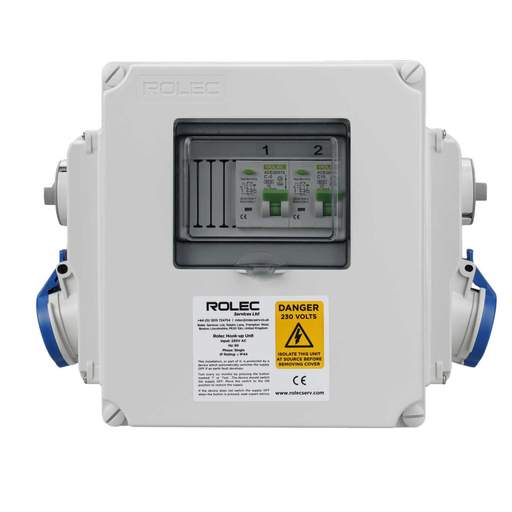

Rolec LSHU 16A Interlocked 2 Way 10A RCBO Caravan Hook Up Point
Part Code: LSHU0020-10A
Stock Code: 2797-1362
Rolec LSHU 16A Interlocked 2 Way 10A RCBO Caravan Hook Up Point
Part Code: LSHU0020-10A
Stock Code: 2797-1362
Features
- 2 x IP44 16A interlocked sockets [restricted to a 10A output] complying to 18th Edition
- 2 x 10A 30mA RCBOs
- Built-in cable terminals
- Switchgear access flap
- Can be stake mounted using LSAF0060 [sold separately]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Grey
- Current Rating
- 16A
- Depth
- 142mm
- Dimensions
- (H)250 mm x (W)221.5 mm x (D)142 mm
- Guarantee
- 1 Year
- Height
- 250mm
- IP Rating
- IP44
- Interlocked
- Yes
- Metered
- No
- Mode
- 2
- Mounting
- Surface / Stake
- Number of Outgoing Ways
- 2
- Packaging Types
- Each
- Suitable Mounting Stake/Post
- LSAF0060
- Unspsc V18
- 39121105
- Unspsc V24
- 39121105
- Voltage Rating
- 230V
- Weight
- 3.00000kg
- Width
- 221.5mm
