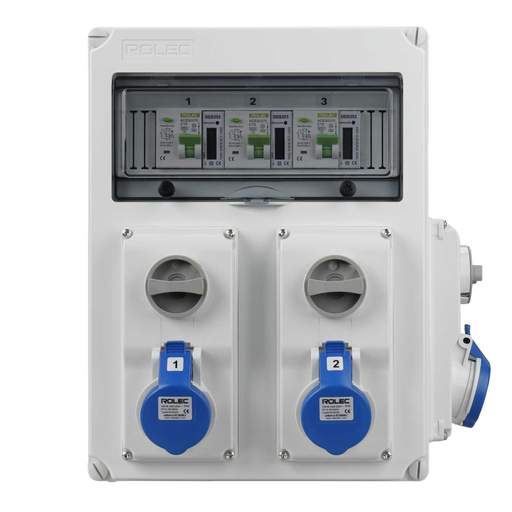

Rolec LSHU 16A Interlocked 3 Way 10A RCBO Metered Caravan Hook Up Point
Part Code: LSHU0130-10A
Stock Code: 2797-1368
Rolec LSHU 16A Interlocked 3 Way 10A RCBO Metered Caravan Hook Up Point
Part Code: LSHU0130-10A
Stock Code: 2797-1368
Features
- 3 x IP44 16A interlocked sockets [restricted to a 10A output] complying to 18th Edition
- 3 x 10A 30mA RCBOs
- 3 x 45A kWh meters
- Built-in cable terminals
- Switchgear access flap

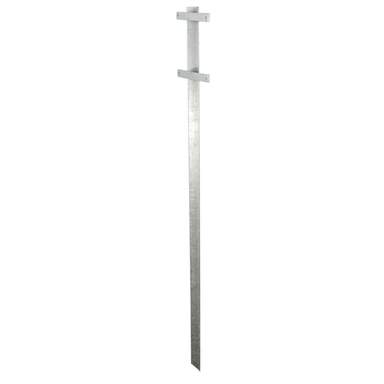

- Can be stake mounted using LSAF0060 [sold separately]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Grey
- Current Rating
- 16A
- Depth
- 152mm
- Dimensions
- (H)360 mm x (W)270 mm x (D)152 mm
- Guarantee
- 1 Year
- Height
- 360mm
- IP Rating
- IP44
- Interlocked
- Yes
- Metered
- Yes
- Mode
- 2
- Mounting
- Surface / Stake
- Number of Outgoing Ways
- 3
- Packaging Types
- Each
- Suitable Mounting Stake/Post
- LSAF0060
- Unspsc V18
- 39121105
- Unspsc V24
- 39121105
- Voltage Rating
- 230V
- Weight
- 4.40000kg
- Width
- 270mm
