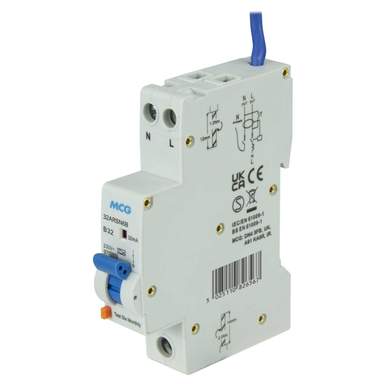

MCG 25A 1P+N 1 Module Bidirectional B Curve 6kA 30mA Type A RCBO
Part Code: 25ARSN6B
Stock Code: 2797-8703
MCG 25A 1P+N 1 Module Bidirectional B Curve 6kA 30mA Type A RCBO
Part Code: 25ARSN6B
Stock Code: 2797-8703
Features
- Bidirectional
- Compact design allows for easier installation
- Commercial and residential applications such as EV charging units
- Single Pole and Switched Neutral
- Protection device combines the overcurrent function of an MCB with earth fault function of an RCD
- DIN rail mountable
- Complete with 400mm Neutral cable
- Test button and trip indicator
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Bidirectional
- Yes
- Compliance
- UKCA, CE
- Current Rating
- 25A
- Depth
- 66mm
- Dimensions
- (H)87 mm x (W)18 mm x (D)66 mm
- Guarantee
- 1 Year
- Height
- 87mm
- Incoming Terminal Capacity
- 16mm² [L/N out]
- Mounting
- DIN Rail
- Number of Modules
- 1
- Number of Poles
- Single Pole & Neutral [Switched]
- Operating Temperature Range
- -25 - +40°C
- Outgoing Terminal Capacity
- 25mm² [L in]
- Packaging Types
- Box
- Rcd Type
- A
- Short Circuit Rating
- 6kA
- Standards
- IEC 61009-1
- Torque Settings
- 1.2Nm [L/N out] / 2Nm [L in]
- Tripping Characteristics
- B Curve
- Tripping Sensitivity
- 30mA
- Unspsc V18
- 39121601
- Unspsc V24
- 39121601
- Voltage Rating
- 230V
- Weight
- 0.01500kg
- Width
- 18mm
