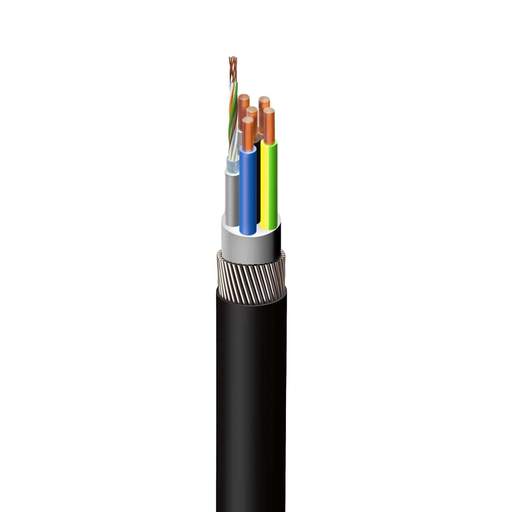

10mm² 5 Core CAT6A SWA EV Cable (Cut Length Sold By The Metre)
Part Code: UKCEV5C10.0CAT6AFTPSWA
Stock Code: 2798-1706
10mm² 5 Core CAT6A SWA EV Cable (Cut Length Sold By The Metre)
Part Code: UKCEV5C10.0CAT6AFTPSWA
Stock Code: 2798-1706
Features
- Designed for EV charging units
- The cable is a combination of power cores and screened Cat6A data cable offering a solution for quick installation including connection to CTs, eliminating the need to run two separate cables
- Suitable for installation direct burial in free-draining soil conditions for fixed indoor and outdoor installations
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Armour Type
- SWA [Galvanised Steel Wires]
- Colour
- Black
- Core Colours
- Blue, Brown, Black, Grey and Green/Yellow
- Cross Sectional Area
- 10mm²
- Diameter
- 23.7mm
- Dimensions
- (Dia)23.7 mm
- Number of Cores
- 5
- Packaging Types
- Metre
- Product Range
- Trident EV Power Plus 6
- Sheath
- PVC
- Standards
- BS EN 60228, IEC 61156-5, BS 7655-1.3, BS EN 60332-1-2
- Unspsc V18
- 26121615
- Unspsc V24
- 26121615
- Voltage Rating
- 700V
- Weight
- 1.09000kg
