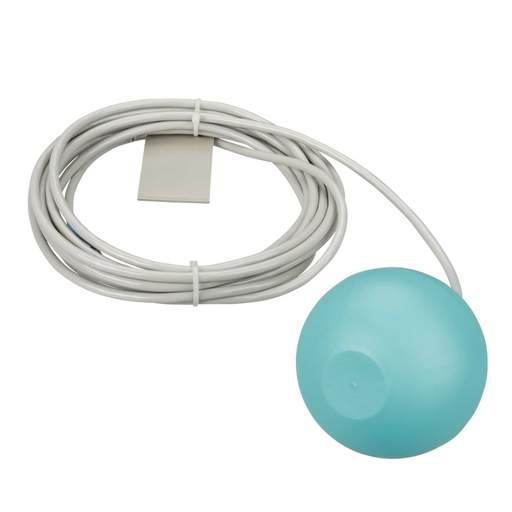

Pepperl & Fuchs Ex Ball Float Switch with 5m PUR Cable
Part Code: 304089
Stock Code: 2799-7030
Pepperl & Fuchs Ex Ball Float Switch with 5m PUR Cable
Part Code: 304089
Stock Code: 2799-7030
Features
- High buoyancy ball design
- Limit value detection for fluids
- Switch element: NC float switch with initiator, mercury-free
- Sleeve design: small diameter, mounting through G1 tap hole possible
- Electrical connections in accordance with NAMUR for hazardous area
- 5m PUR cable, highly flexible, 3 x 0.50mm²
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- II 2G Ex ia IIB T5
- Certification Code
- TÜV 99 ATEX 1407
- Diameter
- 86mm
- Dimensions
- (Dia)86 mm
- Guarantee
- 1 Year
- IP Rating
- IP68
- Packaging Types
- Each
- Sheath
- PUR
- Standards
- EN 60947-5-2:2007+A1:2012
- Unspsc V18
- 39122219
- Unspsc V24
- 39122219
- Voltage Rating
- 8.2V
- Weight
- 0.26300kg
