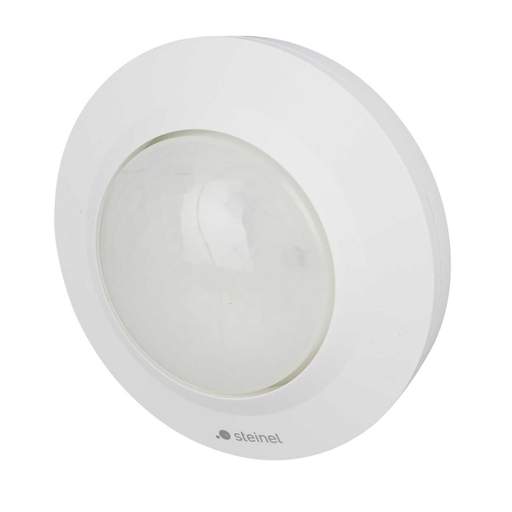

Steinel MD-8 ECO COM1 Concealed Wiring Motion Detector
Part Code: 087814
Stock Code: 2799-7399
Steinel MD-8 ECO COM1 Concealed Wiring Motion Detector
Part Code: 087814
Stock Code: 2799-7399
Features
- MD-8 ECO COM1 infrared motion detector
- Ideal for large offices, meeting rooms or passageways with ceiling heights up to 4m
- Detection zone: 4.5m [radial] and 8m [tangential]
- Heavy-duty relay for high switching capacity
- Easy to mount due to magnetic holder and round design
- External approval and measurement according to sensNORM
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- White
- Compliance
- CE
- Depth
- 70mm
- Detection Angle
- 360°
- Detection Range
- 8m
- Diameter
- 109mm
- Dimensions
- (Dia)109 mm x (D)70 mm
- Finish
- White
- Guarantee
- 5 Years
- IP Rating
- IP20
- Lux Adjustment
- Yes
- Lux Range
- 2 - 1000 lux
- Material
- Plastic
- Mounting
- Ceiling / Recessed
- Mounting Height
- 4m
- Packaging Types
- Each
- Power Rating
- 2000W
- Product Range
- Professional Line
- Sensor
- Infrared
- Timer Adjustment
- 5 secs - 60 mins
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 230V
- Weight
- 0.25800kg
