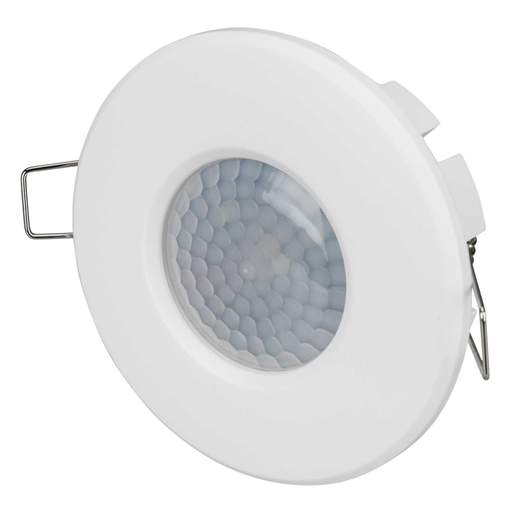

Knightsbridge 360° Ceiling Mount Recessed or Surface PIR White
Part Code: OS0025W
Stock Code: 2809-1266
Knightsbridge 360° Ceiling Mount Recessed or Surface PIR White
Part Code: OS0025W
Stock Code: 2809-1266
Features
- 360° field of detection and 8m range
- Pre-fitted with ceiling springs for easy recess install or simply remove and use with surface box included
- Recess fitting [Cut out: 73mm] or surface mount [projection:36mm]
- Adjustable Lux
- Adjustable time: 10 seconds to 7 minutes
- Switching capacity: max 2000W incandescent / max 1000W LED
- IP20 rated for indoor use only
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Knightsbridge
- Class Type
- Class 2
- Colour
- White
- Cut Out
- 73mm
- Depth
- 27.9mm
- Detection Angle
- 360°
- Detection Range
- 8m
- Diameter
- 93mm
- Dimensions
- (Dia)93 mm x (D)27.9 mm
- Guarantee
- 2 Years
- IP Rating
- IP20
- Lux Adjustment
- Yes
- Maximum Switching Load
- Incandescent - 2000W, LED - 1000W
- Mounting
- Ceiling / Recessed
- Packaging Types
- Each
- Power Rating
- 2000W
- Shape
- Round
- Timer Adjustment
- 10 secs - 7 mins
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 230V
- Weight
- 0.09900kg
