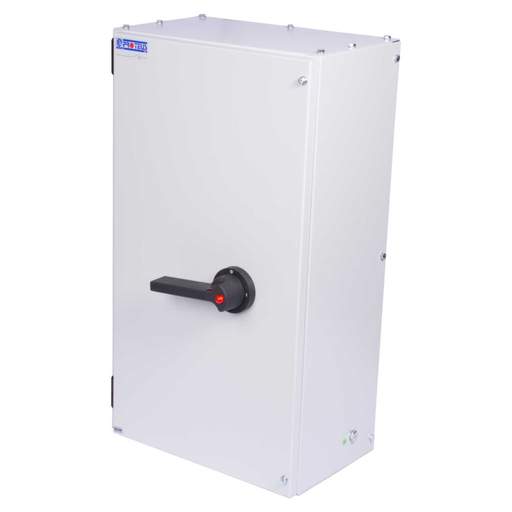

Proteus 200A Four Pole Metal Isolator Switch Disconnector
Part Code: U200S4P
Stock Code: 2809-3696
Proteus 200A Four Pole Metal Isolator Switch Disconnector
Part Code: U200S4P
Stock Code: 2809-3696
Features
- Switch mechanism rated at 65kA when backed up by appropriate BS88 fuses
- Designed to meet the requirements of industrial and commercial installations
- Heavy duty interlocking handle, Padlockable in Off position for security
- Screened cable terminations
- Epoxy powder coat finish
- Robust, heavy duty steel enclosure
- Flush fitting door, removable for ease of installation
- Built-in cable box suitable for most applications
- Manufactured to BSEN60947 parts 1 & 3
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Cable Entry
- Top And Bottom Glandplates Removable For Ease Of Cutting
- Current Rating
- 200A
- Depth
- 255mm
- Dimensions
- (H)700 mm x (W)400 mm x (D)255 mm
- Door Type
- Screw fixed hinged interlocked door
- Guarantee
- 1 Year
- Height
- 700mm
- IP Rating
- IP3X
- Incoming Terminal Capacity
- M10 Bolts 150mm²
- Lockable
- Yes
- Material
- Cold Rolled Steel
- Mounting
- Surface
- Number of Poles
- 4 Pole
- Packaging Types
- Each
- Product Range
- U Switchgear Range
- Standards
- BS EN 60947-3
- Terminal Capacity
- 150mm²
- Unspsc V18
- 39121116
- Unspsc V24
- 39121116
- Voltage Rating
- 230V AC 400V AC
- Weight
- 20.13000kg
- Width
- 400mm
