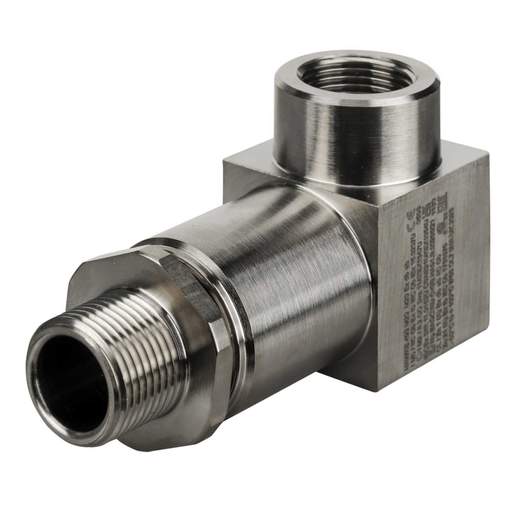

Hawke M20 Male x M20 Female EXD/EXE Nickel Plated Brass Swivel 90° Elbow (Sold in 1's)
Part Code: 493M20M20NP
Stock Code: 2810-6149
Hawke M20 Male x M20 Female EXD/EXE Nickel Plated Brass Swivel 90° Elbow (Sold in 1's)
Part Code: 493M20M20NP
Stock Code: 2810-6149
Features
- The Hawke 493 metallic swivel 90° elbow is designed to be mounted to a hazardous area enclosure
- Integral O-Ring maintains IP66 at swivel joint
- ATEX / IECEx certified for use in Flameproof [EXD], Increased Safety [EXE] and Dust [EXT] protection concepts
- Also approved for Mining and Explosion Proof applications
- Temperature range -60°C to +100 °C
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- Ex II 2GD Ex db eb IIC Gb Ex tb IIIC Db Ex I M2 Ex db eb I Mb CI Zn1 AEx d e IIC Gb
- Finish
- Nickel Plated Brass
- Guarantee
- 1 Year
- IP Rating
- IP66
- Material
- Nickel Plated Brass
- Packaging Types
- Each
- Previously Known As
- 493/M20/M20/NP
- Product Range
- EX Elbow
- Standards
- IEC/EN/CSA/UL 60079-0, 1, 7, 31 CSA C22.2 No. 25, No. 30, No. 45, No. 94, No. 18.3 UL 514B
- Thread Pitch
- 1.5
- Thread Size Female
- M20
- Thread Size Male
- M20
- Unspsc V18
- 39121431
- Unspsc V24
- 39121431
- Weight
- 0.05500kg
- Zone Rating
- Zone 1 Zone 2 Zone 21 Zone 22
