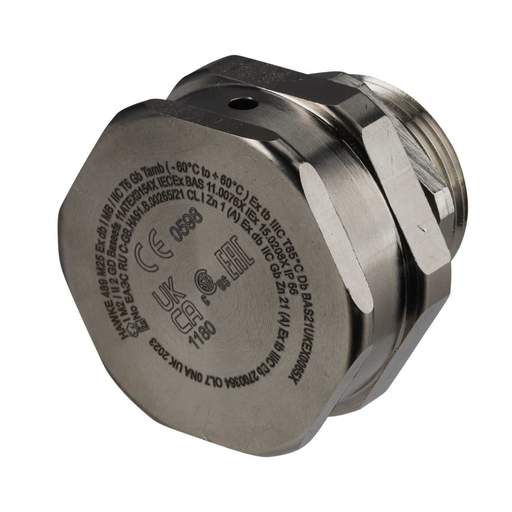

Hawke M25 EXD / EXT Nickel Plated Brass Breather Drain (Sold in 1's)
Part Code: 489M25NP
Stock Code: 2810-6290
Hawke M25 EXD / EXT Nickel Plated Brass Breather Drain (Sold in 1's)
Part Code: 489M25NP
Stock Code: 2810-6290
Features
- The Hawke 489 metallic breather drain is designed to prevent condensation and drain moisture from hazardous area enclosures
- ATEX / IECEx certified for use in Flameproof [EXD] and Dust [EXT] protection concepts
- Also approved for Mining applications
- Temperature range -60°C to +60 °C
- Integral Nitrile ring maintains IP66
- The breather drain must be fitted to the bottom face of the enclosure
- Only one breather drain to be fitted to an enclosure
- The breather drain is only to be fitted to enclosures with a volume less
- than 2.5 litres free volume
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- Ex II 2GD Ex db eb IIC Gb Ex tb IIIC Db Ex I M2 Ex db eb I Mb CI Zn1 AEx d e IIC Gb
- Finish
- Nickel Plated Brass
- Guarantee
- 1 Year
- IP Rating
- IP66
- Material
- Nickel Plated Brass
- Packaging Types
- Each
- Previously Known As
- 489/M25/NP
- Product Range
- Ex Breather Drain
- Standards
- IEC/EN/CSA/UL 60079-0, 1, 31 CSA C22.2 No 0-10 IEC 60529
- Thread Pitch
- 1.5
- Thread Size
- 25mm
- Unspsc V18
- 39121431
- Unspsc V24
- 39121431
- Weight
- 0.15000kg
- Zone Rating
- Zone 1 Zone 2 Zone 21 Zone 22
