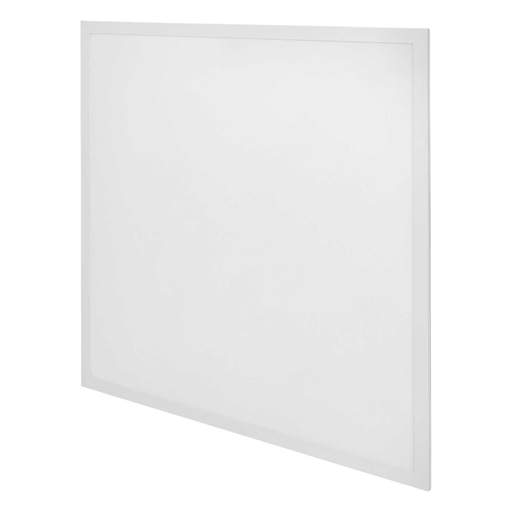

JCC Skytile Base 30W 600mm x 600mm LED Tri-Colour UGR Panel
Part Code: JC080203
Stock Code: 2815-1089
JCC Skytile Base 30W 600mm x 600mm LED Tri-Colour UGR Panel
Part Code: JC080203
Stock Code: 2815-1089
Features
- 3CCT 3000/4000/5700K selectable
- 8 pole loop in/loop out double hinged driver with permanent live and earth for continuous wiring
- Flicker free non dimmable driver as standard
- Meets TP[a] requirements, suitable for all applications
- UGR
19 designed to comply with BS EN 12464-1 lighting of workspace - Suitable for use with remote emergency packs JCEM002 or JCEM002ST [sold separately]
- Register with JCC within 1 year of purchase to extend warranty / guarantee from 2 years to 5 years
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Beam Angle
- 87°
- Class Type
- Class 2
- Colour
- White
- Colour Rendering Index(Cri)
- 82
- Colour Temperature
- Selectable - 3000/4000/5700 K
- Compliance
- UKCA, CE
- Depth
- 25mm
- Dimensions
- (L)595 mm x (W)595 mm x (D)25 mm
- Dimmable
- No
- Efficacy Rating
- 112
- Energy Saving
- Yes
- Finish
- White
- Guarantee
- 2 Years
- IP Rating
- IP40
- Lamp Life
- 54000h
- Lamp Type
- Integrated LED
- Led Type
- Runlite 2835
- Length
- 595mm
- Light Source Energy Rating
- E
- Lumens Output
- 2950lm 3150lm 3350lm
- Material
- Aluminium / Polycarbonate
- Mounting
- Recessed
- Packaging Types
- Each
- Power Rating
- 30W
- Product Range
- Skytile Base
- Standards
- BS EN 60598-2-1, 2-2
- Unspsc V18
- 39111505
- Unspsc V24
- 39111505
- Voltage Rating
- 230V
- Weight
- 1.76kg
- Width
- 595mm
