Bell 2.5W LED Surface Emergency Manual or Self Test Exit Blade with Up Arrow Legend
Part Code: 09012V2
Stock Code: 2815-7671
Bell 2.5W LED Surface Emergency Manual or Self Test Exit Blade with Up Arrow Legend
Part Code: 09012V2
Stock Code: 2815-7671
Delivery
Back in stock 6th May
Features
- Sleek, low profile design
- Selectable self test or manual emergency mode
- Easy switching from non maintained to maintained via removable link
- Can be mounted to ceiling or wall

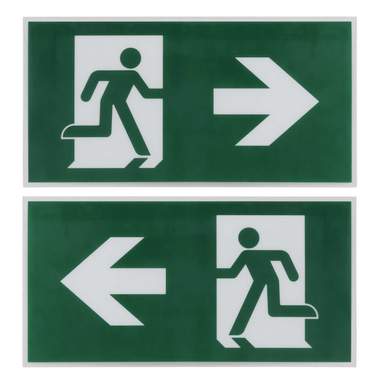

- Supplied with up legend as standard
- 25m viewing distance
- Recess kit available [sold separately]
- Suitable for commercial and industrial installations
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- BELL
- Colour Temperature
- 6500 K
- Depth
- 35mm
- Dimensions
- (H)230 mm x (W)310 mm x (D)35 mm
- Emergency
- Yes
- Emergency Duration
- 3 Hours
- Emergency Type
- Maintained / Non-Maintained
- Energy Saving
- Yes
- Guarantee
- 5 Years
- Height
- 230mm
- IP Rating
- IP20
- Lamp Life
- 25000h
- Lamp Type
- Integrated LED
- Led Brand
- Samsung
- Legend
- Exit Arrow Up
- Lumens Output
- 70lm
- Material
- Aluminium / Polycarbonate
- Mounting
- Surface
- Number of Sides
- 2
- Operating Temperature Range
- -5 - 35°C
- Packaging Types
- Each
- Power Rating
- 2.5W
- Product Range
- Spectrum
- Supplied With
- Arrow Up Legend
- Test Button
- Yes
- Unspsc V18
- 39111708
- Unspsc V24
- 39111708
- Viewing Distance
- 25m
- Voltage Rating
- 230V
- Weight
- 0.83kg
- Width
- 310mm
