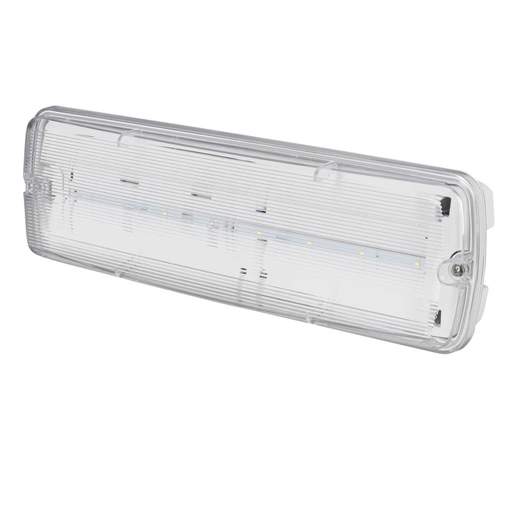

Fusion 2.3W LED Maintained Self Test Bulkhead with Legends
Part Code: FE3BM/ST
Stock Code: 2816-1982
Fusion 2.3W LED Maintained Self Test Bulkhead with Legends
Part Code: FE3BM/ST
Stock Code: 2816-1982
Features
- Automatic self-test function
- Dual Technology: Suitable for maintained/non-maintained operation
- Plastic body and polycarbonate diffuser
- Hinged gear tray
- Gland entry points [5 x 20mm]
- Emergency duration: 3hr / 180mins
- Emergency lumen output: 110lm
- Lumen output: 170lm
- Includes legend pack
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Fusion
- Battery Type
- Lithium Iron Phosphate (LiFePO4)
- Beam Angle
- 120°
- Cable Entry
- 5 x 20mm Gland Entry Points
- Class Type
- Class 1
- Colour
- White
- Colour Temperature
- 6500 K
- Compliance
- UKCA, CE
- Dimensions
- (L)349 mm x (H)64 mm x (W)107 mm
- Emergency
- Yes
- Emergency Duration
- 3 Hours
- Emergency Type
- Maintained / Non-Maintained
- Energy Saving
- Yes
- Finish
- White
- Guarantee
- 2 Years
- Height
- 64mm
- IP Rating
- IP65
- Lamp Life
- 30000h
- Lamp Type
- Integrated LED
- Length
- 349mm
- Lens Colour
- Clear
- Lumens Output
- 110lm 170lm
- Material
- Plastic body and polycarbonate diffuser
- Mounting
- Surface
- Operating Temperature Range
- 0 - 40°C
- Packaging Types
- Box
- Power Rating
- 2.3W
- Product Range
- Emergency Bulkhead
- Suitable For
- Indoor or outdoor use
- Supplied With
- 1 Left/Right Arrow, 1 Up/Down Arrow, 1 Left hand Running Man, 1 Right hand Running Man
- Test Button
- No
- Type
- Auto Self-Test
- Unspsc V18
- 39111709
- Unspsc V24
- 39111709
- Voltage Rating
- 230V
- Weight
- 0.54500kg
- Width
- 107mm
