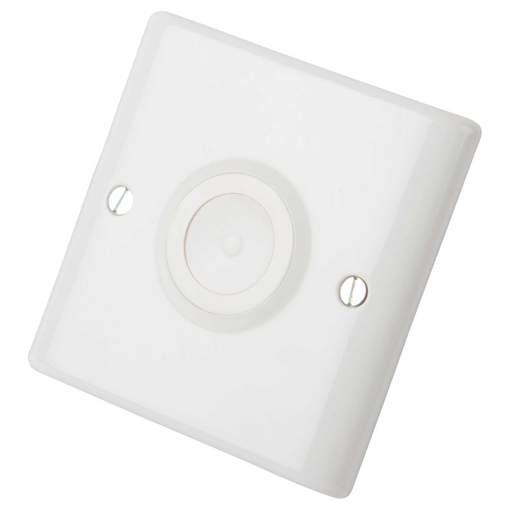

F4P 2 Wire Standard Pushbutton Time Delay Switch
Part Code: F4P2WPB
Stock Code: 2816-2903
F4P 2 Wire Standard Pushbutton Time Delay Switch
Part Code: F4P2WPB
Stock Code: 2816-2903
Features
- Easy to install and operate
- 2-wire [Live and Switch live]
- 10A All lighting load type
- No neutral required
- 16 Timer settings from 2 minutes to 1 hour [including 10sec Test mode]
- Replaces existing switches
- Can be interlinked with other 2 wire F4P2WPB for 2-wayswitching
- 24/7 mains supply required when operational
- UV Resistant
- Suitable for use with 25mm BS back box
- Please note: F4PPFCC capacitor will often be required when switching certain types of loads
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- F4P
- Cancellation Function
- Yes
- Colour
- White
- Compliance
- UKCA, CE
- Current Rating
- 10A
- Depth
- 10mm
- Dimensions
- (H)85 mm x (W)85 mm x (D)10 mm
- Finish
- Glossy
- Frequency
- 50/60 Hz
- Guarantee
- 3 Years
- Height
- 85mm
- Material
- Flame Retardant ABS
- Mounting
- Wall
- Number of Wire Connections
- 2
- Packaging Types
- Box
- Re Trigger Function
- No
- Standards
- BS EN 60669, BS EN 60669-1, BS EN 60669-2-1, BS EN 60669-2-3
- Suitable For
- Resistive, Incandescent, Fluorescent, Compact Fluorescent and LED Loads
- Timer Range
- 2 - 60
- Type
- Pushbutton
- Unspsc V18
- 39122208
- Unspsc V24
- 39122208
- Voltage Rating
- 230V
- Weight
- 0.14500kg
- Width
- 85mm
