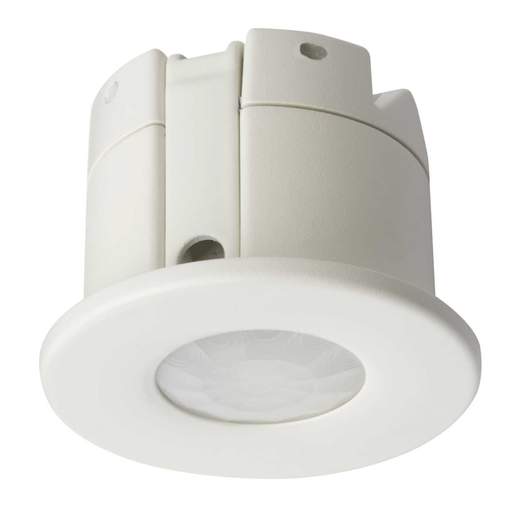

F4P 3 Wire Ceiling Mount PIR Time Delay Switch
Part Code: F4PCPIR
Stock Code: 2816-2918
F4P 3 Wire Ceiling Mount PIR Time Delay Switch
Part Code: F4PCPIR
Stock Code: 2816-2918
Features
- Easy to install and operate
- 3 wire [Live, Switch live and Neutral]
- 10A rated regardless of load type
- Neutral required
- 8 Timer settings from 10 seconds to 1 hour
- Lux and sensitivity adjustment
- Can be interlinked with other F4PCPIR timers for multiple switching
- Red signal LED
- Walk Test Mode - 10 seconds
- Complete with surface mount box and interchangeable chrome/white bezel
- UV Resistant
- Please note: F4PPFCC capacitor will often be required when switching certain types of loads
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- F4P
- Colour
- White
- Compliance
- UKCA, CE
- Current Rating
- 10A
- Cut Out
- 64mm
- Depth
- 72mm
- Detection Angle
- 360°
- Detection Range
- 10m
- Diameter
- 77mm
- Dimensions
- (Dia)77 mm x (D)72 mm
- Guarantee
- 6 Years
- Lux Adjustment
- Yes
- Material
- Flame Retardant ABS
- Mounting
- Ceiling / Recessed / Surface
- Mounting Height
- 2.4m
- Number of Wire Connections
- 3
- Packaging Types
- Box
- Re Trigger Function
- No
- Sensor
- PIR
- Shape
- Circular
- Standards
- BS EN 60669-2-3 [Ed 4], BS EN 60669-2-1 [Ed 3], BS EN 60669-1 A1, BS EN 60529
- Suitable For
- Resistive, Incandescent, Fluorescent, Compact Fluorescent and LED Loads
- Timer Range
- 10 secs - 1h
- Type
- PIR
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 230V
- Weight
- 0.25000kg
