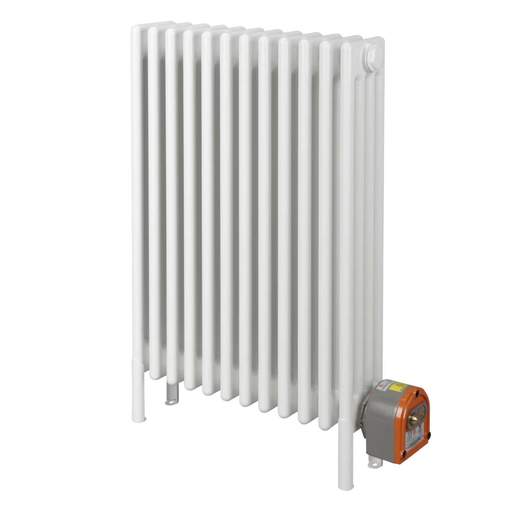

Exheat 1kW FLR Flameproof Liquid Filled Radiator for Zone 1, 2, 21 & 22
Part Code: S63040001
Stock Code: 2818-2529
Exheat 1kW FLR Flameproof Liquid Filled Radiator for Zone 1, 2, 21 & 22
Part Code: S63040001
Stock Code: 2818-2529
Features
- For use in Hazardous Areas [Zone 1, 2, 21 and 22]
- Low surface temperature
- Integral preset surface temperature control thermostat
- Radiator filled with water / glycol mix
- Suitable for ambient temperatures from -20°C to +40°C
- Robust construction
- Manual reset over-temperature cut-out fitted to ensure radiator surface temperature never exceeds 80°C
- 2 × 25mm [plugged] cable entry provided as standard
- Suitable for Chemical Plant Warehouses, Dusty Environments, Explosive Stores and Refineries
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Atex Classificatio
- ATEX II 2 G/D
- Certification Code
- ATEX II 2 G/D Ex d/t IIC T6 Gb Gas IIIC T85°C Db Dust CU TR EAC 1Ex db IIC T6 GbX/tb IIIC T85°C DbX
- Certification Number
- ATEX 6012X
- Depth
- 160mm
- Dimensions
- (H)835 mm x (W)580 mm x (D)160 mm
- Guarantee
- 1 Year
- Height
- 835mm
- IP Rating
- IP6X
- Material
- Powder Coated Pressed Steel
- Mounting
- Floor
- Packaging Types
- Each
- Power Rating
- 1kW
- Unspsc V18
- 40101819
- Unspsc V24
- 40101819
- Voltage Rating
- 230V
- Weight
- 47kg
- Width
- 580mm
- Zone Rating
- Zone 1 Zone 2 Zone 21 Zone 22
