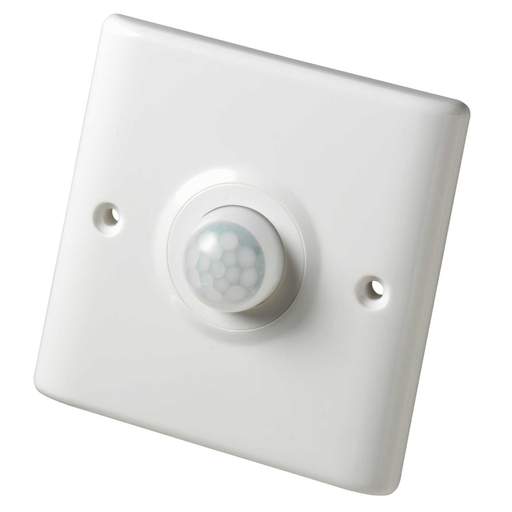

F4P 3 Wire Standard PIR Time Delay Switch
Part Code: F4P3WPIR
Stock Code: 2819-2576
F4P 3 Wire Standard PIR Time Delay Switch
Part Code: F4P3WPIR
Stock Code: 2819-2576
Features
- Easy to install and operate
- 3 wire [Live, Switch live and Neutral]
- 10A rated regardless of load type
- Neutral required
- 16 Timer settings from 2 mins to 1 hours
- Can be interlinked with other 3 wire Standard PIRs for 2-way switching
- Replaces existing switches
- 24/7 mains supply required when operational
- UV Resistant
- Suitable for use with 25mm BS back box
- Please note: F4PPFCC capacitor will often be required when switching certain types of loads
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- F4P
- Colour
- White
- Compliance
- UKCA, CE
- Current Rating
- 10A
- Depth
- 10mm
- Detection Angle
- 360°
- Detection Range
- 7m
- Dimensions
- (H)85 mm x (W)85 mm x (D)10 mm
- Guarantee
- 6 Years
- Height
- 85mm
- Lux Adjustment
- Yes
- Material
- Flame Retardant ABS
- Mounting
- Wall
- Number of Wire Connections
- 3
- Override Switch
- Yes
- Packaging Types
- Box
- Standards
- BS EN 60669, BS EN 60669-1, BS EN 60669-2-1, BS EN 60669-2-3
- Suitable For
- Resistive, Incandescent, Fluorescent, Compact Fluorescent and LED Loads
- Timer Range
- 2 - 60 mins
- Type
- PIR
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 230V
- Weight
- 0.14500kg
- Width
- 85mm
