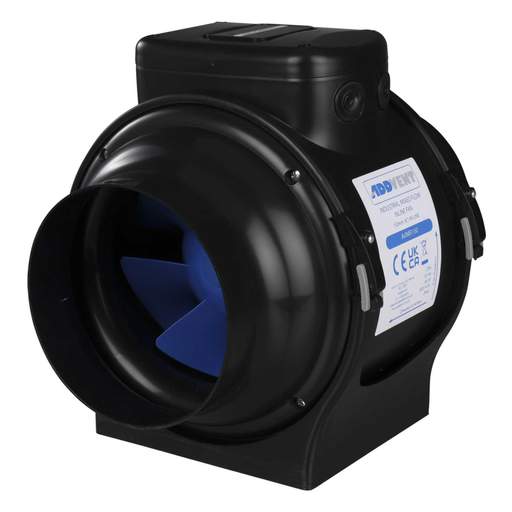

Addvent 150mm Industrial Mixed Flow Inline Fan
Part Code: AVIMFI150
Stock Code: 2820-6724
Addvent 150mm Industrial Mixed Flow Inline Fan
Part Code: AVIMFI150
Stock Code: 2820-6724
Features
- Designed for applications that require extreme air flow rates, with low relative noise
- In-built sound suppressor
- Can be installed in parallel or series to increase operating pressure
- Highly efficient range of commercial / industrial mixed flow extractor fans
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Addvent
- Airflow Cubic Metresper Hour
- 488 / 544 / 600 m³/h
- Airflow Litresper Second
- 136 / 151 / 167 l/s
- Automatic Shutter
- No
- Class Type
- Class 2
- Colour
- Black
- Decibel Rating
- 34 / 35 / 37 dB[A] @ 3 m
- Dimensions
- (L)301 mm x (H)267 mm x (W)247 mm
- Ducting Size
- 150mm
- Guarantee
- 5 Years
- Height
- 267mm
- IP Rating
- IPX4
- Length
- 301mm
- Motor Type
- Three-speed high-efficient asynchronous
- Mounting
- In-Duct
- Packaging Types
- Each
- Power Rating
- 34W 37W 45W
- Size
- 150 mm
- Supplied With
- Fixing Brackets
- Unspsc V18
- 40101502
- Unspsc V24
- 40101502
- Voltage Rating
- 230V
- Weight
- 5.00000kg
- Width
- 247mm
