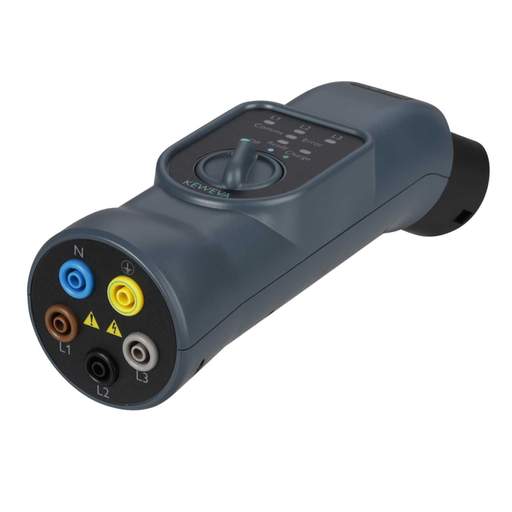

Kewtech EV Charging Point Testing Adapter
Part Code: KEWEVA
Stock Code: 2822-0890
Kewtech EV Charging Point Testing Adapter
Part Code: KEWEVA
Stock Code: 2822-0890
Features
- Suitable for single and three phase charging equipment
- Uses standard 4mm connectors rated at 10A for testing purposes
- Red LEDs indicate live status per phase
- Works with any MFT with EV charging point testing capabilities
- Incorporates an IEC 62196-2 type 2 connector for EV charging units
- Single rotary dial controls the CP status simulation: standby, ready and charging
- Checks the charging station’s PWM signal is at 1kHz confirmed by a blue LED
- Separate red LED indicates when voltage is applied to output connectors
- Supplied with durable carry case
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Guarantee
- 1 Year
- Operating Temperature Range
- 0 - 40°C
- Packaging Types
- Each
- Product Range
- EV Tester
- Safety Range
- CAT II 300V
- Standards
- EN 61010 EMC: EN 61326
- Storage Temperature Range
- -10 - 50°C
- Supplied With
- Carry Case
- Unspsc V18
- 41113681
- Unspsc V24
- 41113681
- Weight
- 0.552kg
