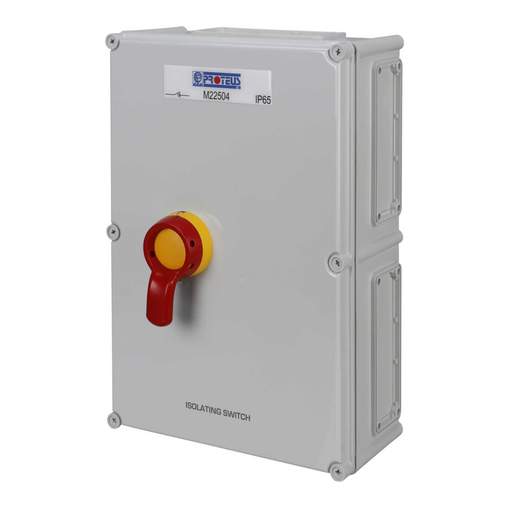

Proteus 250A 4 Pole Rotary Isolator Switch IP65
Part Code: M22504
Stock Code: 2823-4609
Proteus 250A 4 Pole Rotary Isolator Switch IP65
Part Code: M22504
Stock Code: 2823-4609
Features
- Top and Bottom knock-out cable entries
- Excellent insulating properties, with UV and chemical resistance
- Up to 3 padlock fitting positions
- Wide operating temperature range
- Switch ratings at AC21/ AC22 / AC23
- Incoming cable capacity 120mm²
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Cable Entry
- Top / Bottom
- Colour
- Red/Yellow/Grey
- Current Rating
- 250A
- Depth
- 240mm
- Dimensions
- (H)560 mm x (W)380 mm x (D)240 mm
- Guarantee
- 1 Year
- Height
- 560mm
- IP Rating
- IP65
- Lockable
- Yes
- Material
- Polycarbonate
- Mounting
- Surface
- Number of Poles
- 4 Pole
- Packaging Types
- Each
- Standards
- BS EN 60947-3
- Unspsc V18
- 39122217
- Unspsc V24
- 39122217
- Voltage Rating
- 400V 690V
- Weight
- 9.20000kg
- Width
- 380mm
