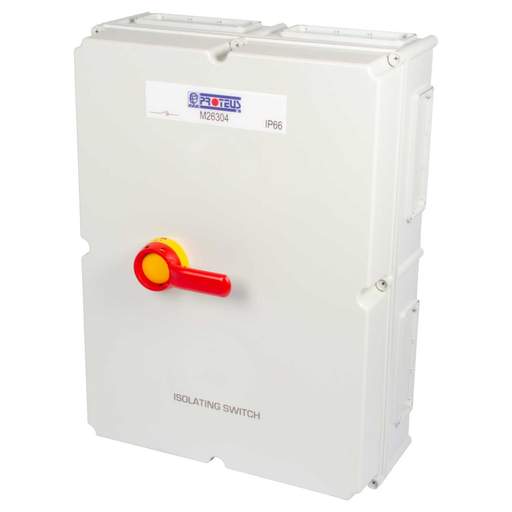

Proteus 630A 4 Pole Rotary Isolator Switch IP65
Part Code: M26304
Stock Code: 2823-4618
Proteus 630A 4 Pole Rotary Isolator Switch IP65
Part Code: M26304
Stock Code: 2823-4618
Features
- Top and Bottom knock-out cable entries
- Excellent insulating properties, with UV and chemical resistance
- Up to 3 padlock fitting positions
- Wide operating temperature range
- Switch ratings at AC21/ AC22 / AC23
- Incoming cable capacity 300mm²
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Cable Entry
- Top / Bottom
- Colour
- Red/Yellow/Grey
- Current Rating
- 630A
- Depth
- 310mm
- Dimensions
- (H)760 mm x (W)560 mm x (D)310 mm
- Guarantee
- 1 Year
- Height
- 760mm
- IP Rating
- IP65
- Lockable
- Yes
- Material
- Polycarbonate
- Mounting
- Surface
- Number of Poles
- 4 Pole
- Packaging Types
- Each
- Standards
- BS EN 60947-3
- Unspsc V18
- 39122217
- Unspsc V24
- 39122217
- Voltage Rating
- 400V 690V
- Weight
- 25.10000kg
- Width
- 560mm
