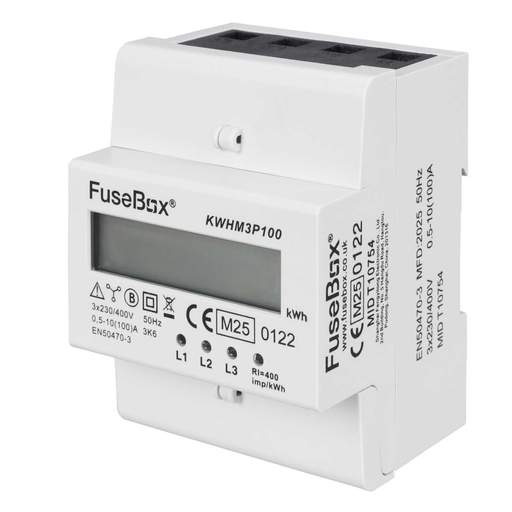

Fusebox 100A 3 Phase MID Certified kWh Meter
Part Code: KWHM3P100
Stock Code: 2827-6498
Fusebox 100A 3 Phase MID Certified kWh Meter
Part Code: KWHM3P100
Stock Code: 2827-6498
Features
- Three phase MID certified energy meter suitable for commercial, industrial and domestic applications
- Compact design with easy to read backlit LCD display and pulse output
- Access to terminals can be wire sealed to prevent tampering
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Fusebox
- Current Rating
- 100A
- Depth
- 64mm
- Dimensions
- (H)110 mm x (W)70 mm x (D)64 mm
- Guarantee
- 1 Year
- Height
- 110mm
- Mounting
- DIN Rail
- Number of Modules
- 4
- Number of Poles
- Triple Pole and Neutral
- Packaging Types
- Each
- Unspsc V18
- 39121103
- Unspsc V24
- 39121103
- Voltage Rating
- 230V 400V
- Width
- 70mm
