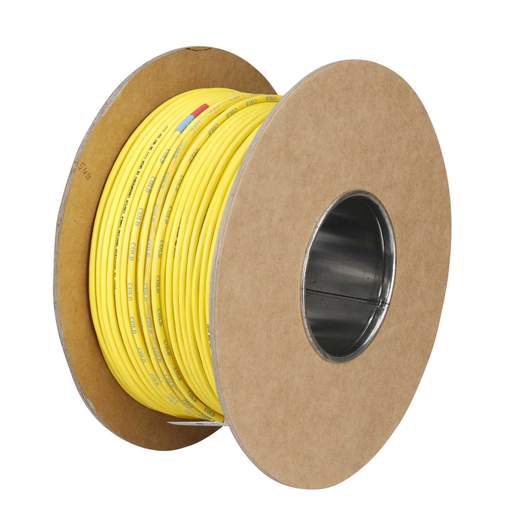

ThermoSphere Ultimate 1.8kW Underfloor Heating Cable (150m Length)
Part Code: HDMC-150-1800J
Stock Code: 2830-6351
ThermoSphere Ultimate 1.8kW Underfloor Heating Cable (150m Length)
Part Code: HDMC-150-1800J
Stock Code: 2830-6351
Features
- ThermoSphere Ultimate combines a twisted twin cable, and in-line joint technology removing the risk of damaging the cable during installation
- Compatible with all decoupling membrane mats so you can use your preferred brand
- No bulky hot/cold joint that needs cutting into the floor
- Install into ThermoSphere membrane at either 130W/m² [3 dimple spacing] or 195W/m² [2 dimple spacing]
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- ThermoSphere
- Average Power Rating
- 195w/m²
- Colour
- Yellow
- Compliance
- BEAB, CE
- Coverage
- 9.23m²
- Dimensions
- (L)150 m
- Frequency
- 50 Hz
- Guarantee
- Lifetime
- IP Rating
- IP68
- Length
- 150m
- Packaging Types
- Reel
- Power Rating
- 1.8kW
- Product Range
- ThermoSphere Ultimate
- Thickness
- 5.5mm
- Unspsc V18
- 40101840
- Unspsc V24
- 40101840
- Voltage Rating
- 230V
- Weight
- 5.34000kg
