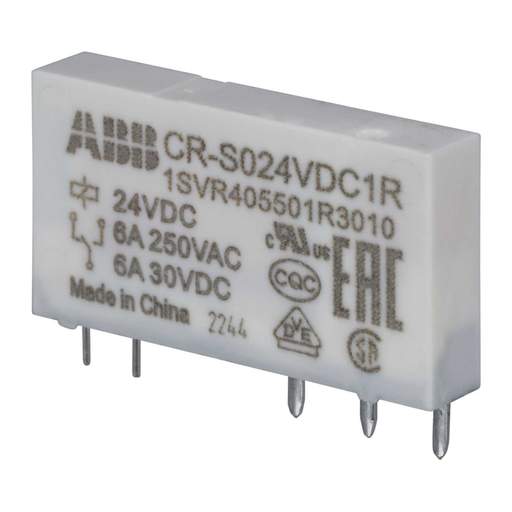

ABB CR-S024VDC1R 5 Pin 6A 24V DC Interface Plug In Relay
Part Code: 1SVR405501R3010
Stock Code: 2830-9141
ABB CR-S024VDC1R 5 Pin 6A 24V DC Interface Plug In Relay
Part Code: 1SVR405501R3010
Stock Code: 2830-9141
Features
- CR-S012VDC1R slim pluggable interface relay suitable for direct mounting on a PCB or in ABB's sockets
- Operates with a 24V DC rated control supply voltage
- 1 C/O [SPDT] output
- Output rated at 250V / 6A
- May be used for electrical isolation, amplification and signal matching
- UL 94-V0 certified
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Coil Voltage
- 24V DC
- Compliance
- CE
- Contact Configuration
- 1 CO
- Current Rating
- 6A
- Depth
- 28mm
- Dimensions
- (H)15 mm x (W)5 mm x (D)28 mm
- Guarantee
- 1 Year
- Height
- 15mm
- IP Rating
- IP20
- Maximum Operating Temperature
- 85°C
- Minimum Operating Temperature
- -40°C
- Number of Pins
- 5
- Packaging Types
- Each
- Product Range
- CR-S Relays
- Standards
- CAN/CSA C22.2 No.14, IEC/EN 61810-1, UL 508
- Type
- Pluggable Slim Interface Relay
- Unspsc V18
- 39122325
- Unspsc V24
- 39122325
- Voltage Rating
- 250V
- Weight
- 0.006kg
- Width
- 5mm
